Conductor Coil Hairpin Winding Machine Hair Pin Rectangular Coil Auto Form Machine

China Conductor Coil Hairpin Winding Machine Hair Pin Rectangular Coil Auto Form Machine supplier

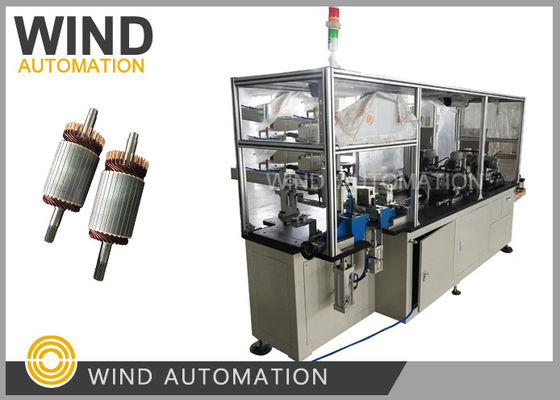

Large Image :  Conductor Coil Hairpin Winding Machine Hair Pin Rectangular Coil Auto Form Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-AWF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Detailed Product Description
Critical Factor: Formed Hair Pin Meet Armature ID,OD,Height Working Station: Combined Machine
Handled Wire Size: 3mm*8mm, AWG9, AWG0 Hairpin Forming Process: Cutting, Enamel Stripping, Forming
Cycle Time: The Cycle Time Related To Wire Length HS Code: 84798110

Hairpin Forming Conductor Coil Hair Pin Rectangular Coil Auto Form Machine WIND-AWF Series



(1) Application:



Low duty cars starter







(2) Advantages:



 Hairpin cycle time



The cycle time according to wire length and shape is 2.5s to 5s per piece





Feeding length



Controlled by servo motor, adjustable





Hairpin forming process



Straighten, feeding wire, remove enamel(mean time press wire), cutting, forming

(three cylinder for cutting, forming and twisting U)









(3) Forming process:

1. Load Rectangular coil in auto feeder unit.

2. Straightening of coil

3. Stripping on Flat Top & bottom side of coil – Grinding method or cutting method

4. Stripping of Left & Right side of coil – Grinding method or cutting method

5. Chamfer forming in coil

6. Servo motor feeding

7. Cutting of coil – Required length

8. U Shape forming

9. Final shape forming twisting

10. Deliver Final pin to Gravity Chute





(4) Configuration:



1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.



2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.



3. Taiwan Nicholas precision planetary reducer.



4. Taiwan AIRTAC pneumatic parts and solenoid valves.



Hairpin forming for starter armature is one of the armature manufacturing process and below information are required to check when you send inquiry





1. Formed conductor drawing To check the size of conductor and angle of R size
2. Armature lamination drawing To check the adpation of the formed wire which will be inserted to armature slot by machine or by hand
3. Armature sample with formed wire inserted To check and produce tooling according the actual sample





Please click below picture to view video
