Critical Factor: | Formed Hair Pin Meet Armature ID,OD,Height | Working Station: | Combined Machine |
---|---|---|---|
Handled Wire Size: | 3mm*8mm, AWG9, AWG0 | Hairpin Forming Process: | Cutting, Enamel Stripping, Forming |
Cycle Time: | The Cycle Time Related To Wire Length | HS Code: | 84798110 |

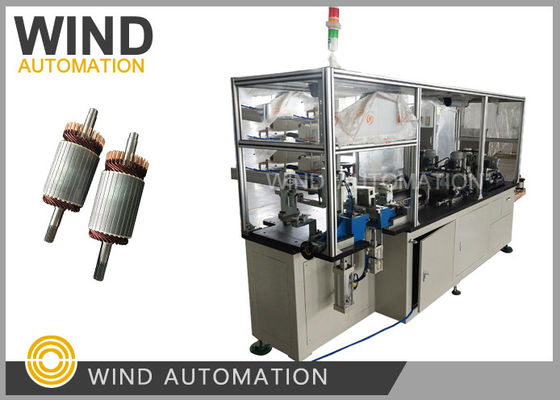

Hairpin Forming Conductor Coil Hair Pin Rectangular Coil Auto Form Machine WIND-AWF Series
(1) Application:
Low duty cars starter
(2) Advantages:
Hairpin cycle time |
The cycle time according to wire length and shape is 2.5s to 5s per piece
|
Feeding length |
Controlled by servo motor, adjustable
|
Hairpin forming process |
Straighten, feeding wire, remove enamel(mean time press wire), cutting, forming (three cylinder for cutting, forming and twisting U)
|
(3) Forming process:
1. Load Rectangular coil in auto feeder unit.
2. Straightening of coil
3. Stripping on Flat Top & bottom side of coil – Grinding method or cutting method
4. Stripping of Left & Right side of coil – Grinding method or cutting method
5. Chamfer forming in coil
6. Servo motor feeding
7. Cutting of coil – Required length
8. U Shape forming
9. Final shape forming twisting
10. Deliver Final pin to Gravity Chute
(4) Configuration:
1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.
2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.
3. Taiwan Nicholas precision planetary reducer.
4. Taiwan AIRTAC pneumatic parts and solenoid valves.
Hairpin forming for starter armature is one of the armature manufacturing process and below information are required to check when you send inquiry
1. Formed conductor drawing | To check the size of conductor and angle of R size |
2. Armature lamination drawing | To check the adpation of the formed wire which will be inserted to armature slot by machine or by hand |
3. Armature sample with formed wire inserted | To check and produce tooling according the actual sample |
