Rectangle Wire Forming Machine With Splitting Method Not Punch

China Rectangle Wire Forming Machine With Splitting Method Not Punch supplier

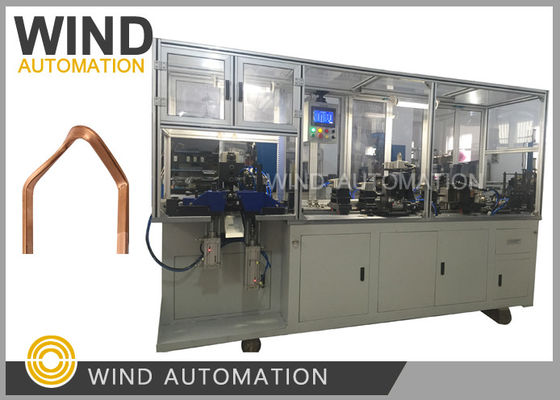

Large Image :  Rectangle Wire Forming Machine With Splitting Method Not Punch

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-AWF-F

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Detailed Product Description
Critical Factor: Formed Hair Pin Meet Stator ID,OD,Height Working Station: Combined Machine
Handled Wire Size: 3mm*8mm, AWG9 AWG1 Hairpin Forming Process: Cutting, Enamel Stripping, Forming
Cycle Time: The Cycle Time For Wire Is 3s To 5s HS Code: 84798110

Rectangle Wire Forming Machine With Splitting Method Not Punch WIND-HF-BX



(1) Application:



Low duty cars starter







(2) Q&A of punch forming machine:



Question: How to form the chamfer at coil edge while pin forming process ? (Whether cutting method or Squeezing method)



Answer: Chamfer is done after enamel removing and before cutting with punch cutting method, because your coil is formed by splitting

Question:What would be the capability can obtain for formed pin length in pin forming machine

Answer:

The total length of formed pin is settled

Question:What would be the coil length repeatability in pin forming

Answer:The length is controlled by servo motor, it is consistant length with repeatability

Question: Pl confirm coil length repeatability in terms of value like 0.1 or 0.2 mm.. ?

Answer:Formed coil length tolerance +/-0.2mm





(3) Parameter:

 Core slots covering range: 72slots, 84 slots, 96 slots





(4) Configuration:



1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.



2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.



3. Taiwan Nicholas precision planetary reducer.



4. Taiwan AIRTAC pneumatic parts and solenoid valves.





Input:

Rectangular coil roll – (WIND-HF-BX having auto feeder unit for coil roll).

Output:

Formed Pin





Please click below picture to view video
