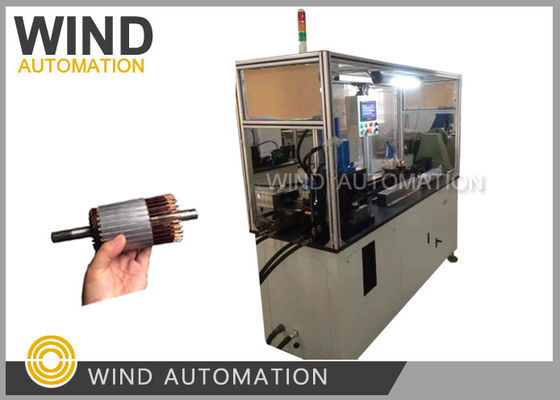

Starter Bar Rectangle Hairpin Winding For Automobile Industry Motors Production

China Starter Bar Rectangle Hairpin Winding For Automobile Industry Motors Production supplier

Large Image :  Starter Bar Rectangle Hairpin Winding For Automobile Industry Motors Production

Product Details:

Place of Origin: China
Model Number: WIND-AWF

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Detailed Product Description
Flat Wire Application: Wire Bending Machine For Hair Pin Working Station: Wire Forming Combined Machine
Handled Wire Size: Starter Flat Wire Conductor Below 3mm*8mm Hairpin Forming Process: Feeding,Straighten Alignment, Cutting And Punchforming, Unloading
Cycle Time: Accoring To Length 5s To 8s Per Piece HS Code: 84798110
Flat Wire New Energy Drive Motor: 1KW To 150KW After Sales: Engineers Available To Service Machinery Overseas

Starter Bar Rectangle Hairpin Winding For Automobile Industry Motors Production WIND-AWF


(1) Application:

Starter Bar Rectangle Hairpin Winding machine is designed for automotive motors, pure electric car motors, hybrid car motors,

electric forklifts motors, electric tricycles motors, tourist vehicles motors, power tools motors and other automobile industry motors.


(2) Advantages:



Hair pin forming Optional Remark

spools size for holding wire for Wind Automation

to design the Wire dereeling device

Enamel stripping   Stripping method can be grinding or cutting according to actual situation
Feeder  Encode Feeding length can be setted on touch screen, controlled by servo motor
Cutting   Cylinder presure to control, also can shape cutter

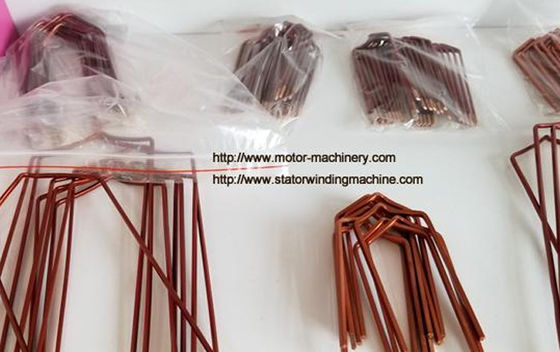

Forming   The forming angle,size should suitable stator, drawing is only for reference
U bending Hold one side, twist the other side Splitting forming or Punch forming
Hair pin forming cyle time 4~5s/pc (Length 300mm) 6~8s/pc About 4 to 5seconds per root (Wire length 300mm)



automatic straighten the raw coil,remove enamel of four sides by grinding or cutting( flat surface, side surface at same time Chamfer), automatic industrial vacuum cleaner suction, servo motor feeding,encoder check if servo motor send the same length every time detection,cutting, forming,


(3) Parameter:


Power Supply Voltage: 3Φ-380V±10% 50H


Air source Pressure: 0.5~0.7Mpa


Varnish Removing Length: 0~50mm


Wire Feeding Length: 150~400mm


Cycle time: 6s' to 8s' for 300mm length


Wire size handled: 3*8mm




(4) Configuration:


1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.


2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.


3. Taiwan Nicholas precision planetary reducer.


4. Taiwan AIRTAC pneumatic parts and solenoid valves.


5. Schneider Electric components, Mingwei switch power supply.


6. Welding rack, surface spray, color: gray. Taiwan plate grinding, plating.


7. The whole part of the aluminum frame frame, three-color signal indicator.


8. The mold part of the mold steel vacuum quenching treatment.


9. To paint part of the use of hydraulic punching method, punching part of the position adjustment device


    adjustment screw, automatic vacuum.


10. Cut off part of the use of cylinder punching.


11. Bending U-shaped part of the use of cylinder punching.


12. 150L hydraulic system set.


13. 3KW automatic vacuum cleaner set.


14. A set of automatic discharge machine.
