|Working Station:||One Station||Hairpin Twisting Level:||New Vertical Type Instead Of Horizontal Type|
|Controller:||PLC||Twisting Device:||Servo Motor|
|Application:||DC Car Motor Starter||After Sales:||Engineer Available To Give Solution|

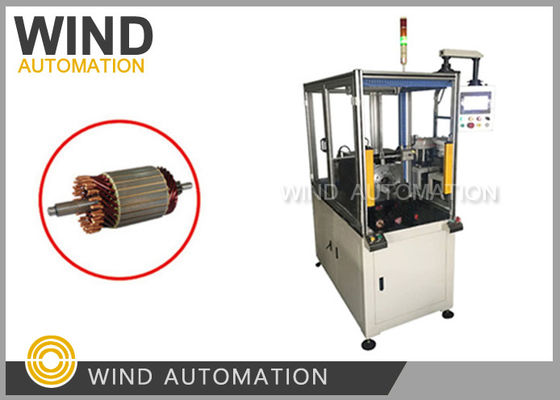

Hairpin Twisting After Hair Pin Winding Insertion Servo Motor Not Hydraulic Machine
1.New Vertical type hairpin twisting machine, instead of Horizontal starter armature wire twisting,
2.Servo motor control the twisting angle which can be setted on touch screen
3. Easy to change tooling
Twisting machine Applications:
|Starters||Armature lead wires twisting|
|Starter-generators for Automotive||Car Vehicle Armature wire twisint|
|Starter of Aircraft Industries||Areospace starter armature wire twisting|
|BSG for Hybrid car||Electric car stator wire twisting (two layers, four layers)|
armatures of starters and starter-generators for the Automotive OEM and Aircraft Industries
Hairpin Twisting Machine configuration and functions:
(1) The frame body is made of angle steel, sprayed, color: computer ash.
(2) The sheet metal is sprayed in the same color as the frame, and the countertop is finely ground.
(3) Schneider switching power supply, low voltage electrical, and main switch control.
(4) Taiwan AIRTAC cylinder, solenoid valve and pneumatic unit (triple piece).
(5) Mitsubishi PLC program control, WEINVIEW man-machine interface
(6) Delta servo motor, Taiwan precision planetary reducer
(7) Linear guide: Taiwan HIWIN
(8) With single-action / automatic function, the fault automatically stops.
(9) With output setting, production count, delay, etc.
Main technical indicators of the equipment:
(1) Working voltage: 380VAC 50HZ
(2) Working pressure: ≥ 5.0MPa
(3) Equipment efficiency: about 15 seconds / piece
(4) Equipment weight: about 900KG
(5) Basic equipment size: 900*1100*1950mm
Hairpin Twisting Machine working process:
Manually put the rotor into the positioning sleeve → press the start button with both hands → tighten the cylinder to tighten the rotor → insert the cylinder action → servo motor twist→ Rebound → Eject → Servo Return → Complete
Servo motor twisting machine is an improved model based on hydraulic twisting machine.
The twisting method adopts double servo motor twisting method,
precise twisting angle, easy operation and reliability, easy replacement of tooling fixtures, good versatility,
The inserted protection device can effectively ensure that the root of the copper wire does not puncture with the copper chip,
which effectively guarantees the product quality.
The equipment can automatically complete the clamping, automatically feed the servo twist head to a set angle,
rebound to a set angle, and eject. etc.
Please click below link to view vertical type hairpin twisting machine working video
