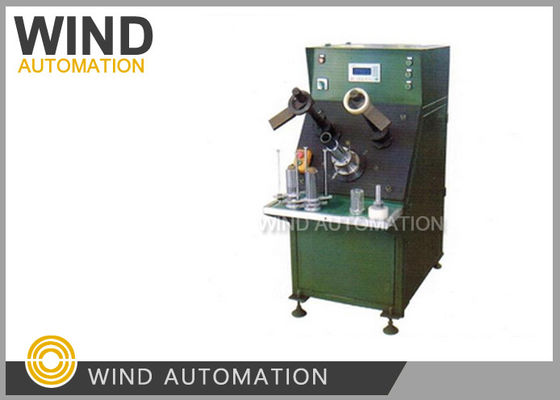

Automatic Insertion Machine Single Phase AC Motor Stator Coil Winding 0.75KW
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Motor Stator Coil Winding: | Less Investment Than WIND-90-CWI | Compare To WIND-90-CWI: | Save Energy |
|---|---|---|---|
| What Type Motor: | 1Phase AC Motor Winding Insertion | Automation Type: | Fully Automatic |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | stator coil winding machine,automatic coil winding machine |
||
Single Phase AC Motor Stator Coil Winding Insertion Machine 0.75KW WIND-80-CWI
(1) Application:
AC motor stator winding and wedge insertion machine, Install winding and wedge coils for pump motor,
washing machine motor, conditioner motors ,induction motor,concentric Winding insertion machine
(2) Advantages:
|
✓ Energy Saving
|
0.75KW |
|
✓Dedicated Type
|
1Phase AC motor winding insertion |
|
✓Cost Saving
|
Economic type for developing country |
|
✓Concentric Winding insertion machine
|
Servo type or hydraulic type choice |
(3) Parameter:
Thickness of stator lamination:10mm-80mm
Stator ID: Φ 40mm~Φ 90mm
Max outer diameter of stator: Φ 160mm
Max winding feeding rate: ≤ 80%
Input: 220V / 50Hz
Air pressure: 0.5-0.8MPa
Power: 0.75KW
Machine productivity: 400pcs/ 8 hours
Dimension: 1100mm × 700mm × 1400 mm
Weight: ≈ 450KGS
Please click below link to view video
