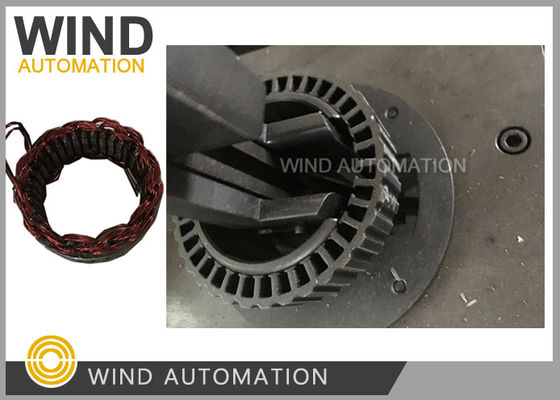

36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually

China 36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually supplier
36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually supplier 36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually supplier

Large Image :  36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually

Product Details:

Place of Origin: China Best No Hook Commutator Armature Winder
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-AW-S

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment Dimension 420mm*430mm*440mm, Weight around 40KGS
Delivery Time: 45 Working Days
Payment Terms: T/T
Supply Ability: 10pcs per 10days
Detailed Product Description
Machine Type: Manual Tool To Assist The Alternator Winding Winding Type: Wave Winding
Generator Production: Suitable For Small Quantity Wave Winding Max Wire Gauge: Wire Diameter Below 1.6mm (AWG14)
Machine Tool: Make The Wave Winding Process Easier Winding Way: Totally Manual
Slots: 36Slots, 42Slots, 48 Slots
High Light:

motor coil winding machine

,

stator coil winding machine

How To Wave Wind Alternator Stator Coil Automotive Estatores Manually WIND-AW-S







Application:



Wind and insert wave shape coil winding for auto generator stator,automotive alternator,estatores







Advantages:



1. Fully mechanical machine per stator size and winding way, no maintenance needed



2. Economic alternator stator coil wave winding,suitable for small quality production or rewind shop



3. Stator yield from 40pcs to 150pcs per day







Main Data:



Dimension 420mm*430mm*440mm (17in*17in*20in)



Weight around 40KGS(88lb)



Wire size handled 1.0mm to 1.9mm (AWG12~AWG18)



Production output is related to the wave winding diagram ( wire diameter and turns no.), slot numbers



When sending inquiry please provide below information,



1. Wound Stator Photo with winding diagram



2. Winding diagram should include wire diameter, turns no. and slot numbers







Please click below picture to view video

36 42 48 Slots Wave Winding Machine Alternator Automotive Estatores Manually
