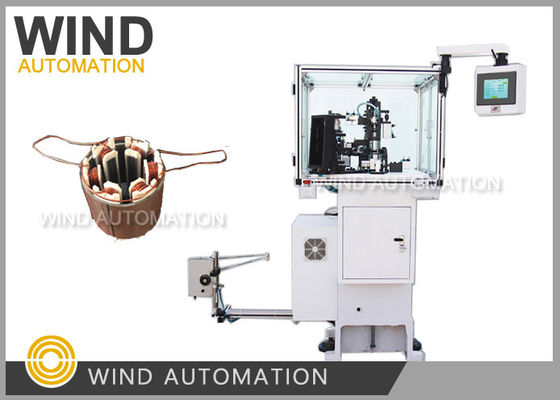

Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine

China Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine supplier

Large Image :  Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-2-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Coil Winding And Tapping: Not Only Automatically Winding,but Also Automatically Tapping BLDC Motor Stator Poles: Most Of Stator Handled Is With 6poles
Wire Gauge: Min. 0.1mm (AWG38) Automation Type: Fully Automatic Vertical Winding
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
Highlight:

motor coil winding machine

,

stator coil winding machine

Brushless Motor Inslot Stator Coil Needle Winding and Tapping Machine WIND-2-TSM







Application:



Inslot Stator  such as fan motor, washing machine motor, compressor motor, stepper motor which requires



winding and tapping







Advantages:



1. Delta PLC, Delta Servo System



2. Easy Operation with Human-Machine interference



3. Rich experience in 6,8,9,12 tooth can ensure the good performance of winding machine



    and handled types of 6 tooth poles stator which need tapping







Parameter:



Wire diameter: 0.08 to 1.2mm



Stator ID: above 19mm



Stack height: 7 to 90mm



Air pressure:5~7kg/square centi-meter



Power:AC380V 50/60Hz



Weight: about 500kgs



Dimension: 1800(L)x1150(W)x1600(H)mm







Winding Cycye Time example:





 1.BLDC motor for elevator door 12 poles



 stator diameter inside 64.5 mm ,outside 105 mm



 and 320 spire every poles





 It cost around 9 to 10 minutes per piece



 2. For BLDC Motor 6 poles coils



 winding data 435 turns per coil,



 wire 34 swg(0.234mm),



 total weight of 6 coil-90grms





 It takes around 7minutes/pc



 That is stator output quantity 70pcs/8 hours







Please click below picture to view video
