Induction Motor Stator Coil Winding Machine Fully Automatic Ventilador Ocilante
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Motor Stator Coil Winding: | With Servo System Not CNC Type | Compare To Common Coil Winder: | Save Copper Wire |
|---|---|---|---|
| Wire Gauge: | Min. 0.1mm (AWG38) | Automation Type: | Fully Automatic Vertical Winding With Rotary Device |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | stator coil winding machine,automatic coil winding machine |
||

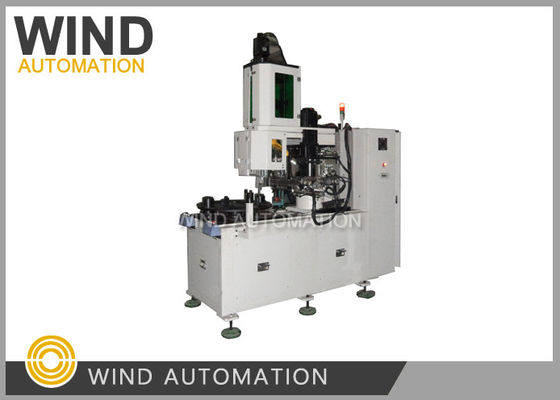

Fully Automatic Induction Motor Stator Coil Winding Ventilador Ocilante WIND-100-VW
Application:
Induction motor pump compressor stator automatic coil winding coil making machine with servo system
WIND-100-VW Automatic vertical winding machine for winding vending machines, wheelchairs, medical
beds, and treadmills motors
Advantages:
|
✓ Material Saving |
Save cooper wire because don't need to connect separate coils
|
| ✓Stator narrow slot |
Constant winding quality suitable for high filling rate stator winding insertion
with slot width above 1.36mm
|
|
✓Labor cost Saving |
Stator winding machine wind coil directly to windings transfer former, operator
no need to put the coils in place, instead they just need to put on transfer
former on the winding insertion machine
|
|
✓ Better winding quality
|
Comparing to common cnc winding making machine, WIND-100-VM not only
save copper wire, but also ensure the winding quality during insertion to
stator,there winding wires don't break during insertion operation process
|
Parameter:
Wire diameter:0.2~1.2mm
Min stator ID:40mm
Max stator OD:175mm
Core length:40-130mm
Power:380V, 50/60KW
Weight: about 1100kgs
Dimensions: 1900 (L)x850 (W)x3200(H)mm
China Local well known respected motor manufacturers user's feedback
WIND-100-VW vertical winding machine wind the coil and put coil to transfer form
(the transfer form with wire can be embered in stator in next operation process wedge and coil insertion
machine)
It is feature is high efficiency,save copper wire and suitable for small slot opening stator with high filling
rate, also the wire don't break during insertion operation.
Please click below link to view video
