Outside Stator Flyer Winding Machine External Rotor Fan Motor Inverter Generator Motor

China Outside Stator Flyer Winding Machine External Rotor Fan Motor Inverter Generator Motor supplier

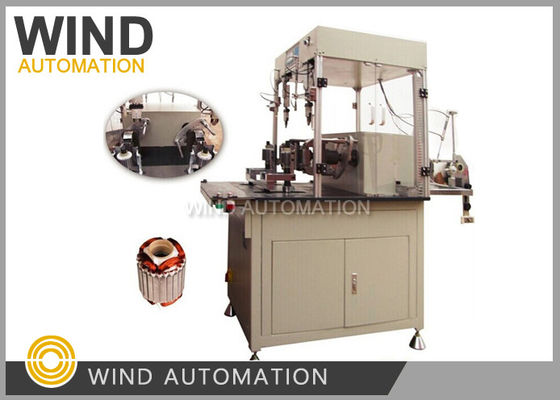

Large Image :  Outside Stator Flyer Winding Machine External Rotor Fan Motor Inverter Generator Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-8002B

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T
Detailed Product Description
Condition: New Application: Fan Motor Winding
Working Station: Two Station Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

fan winding machine

,

fan stator winding machine

External Rotor Fan Motor Inverter Generator Motor Outside Stator Flyer Winding Machine







Application:



Flyer winding external rotor, inverter generator stators, fan motor stator with 12 slots,16 slots,24 slots







Advantages:



1. Decicated winding machine for external stator



2. Two station with mass production



3. Achieve good feedback and repeated order from China local customers







Feature:



Automatic Stator Coil Winding machines for External Rotor/Outer Rotor Motors,



Similar to Fly Arm machines used for Armature Winding







Parameter:



Flyer running diameter:200mm



Array spindle stroke:130mm



Wire diameter:0.1 to 0.7mm



Winding speed: 2000RPM



Main motor power: 1.1KW



Air pressure:0.6MPa



Power:2KW, AC220V 50/60Hz



Weight: about 300kgs



Dimension: 1600(L)x800(W)x1600(H)mm







Below information are needed to recommend suitable machine:





Rotor slot no.





24 slots or 36 slots or other slots





Rotor OD size,stack height





Rotor OD such as110mm, one of them height 80mm, how about



other height





Winding diagram of stator





Some of winding way should be changed to compliant with



machine





Single phase or three phase



and how many poles





Please make a list  separately,We can suggest winding diagram



per motor phase and poles








Please click below picture to view video

https://youtu.be/0hg5xU6A4ps​



Outside Stator Flyer Winding Machine External Rotor Fan Motor Inverter Generator Motor
