How To Judge Quality Of Motor Stator Armature After Winding Welding Analysis

China How To Judge Quality Of Motor Stator Armature After Winding Welding Analysis supplier

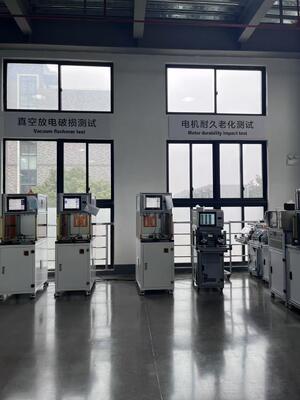

Large Image :  How To Judge Quality Of Motor Stator Armature After Winding Welding Analysis

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-DTS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Test Product: Generator Alternator Stator
Working Station: Double Station Testing Item Content Display: Dispositivos Testador
HS Code:: 9030390000 After Sales Service: Engineer Available For Oversea Service

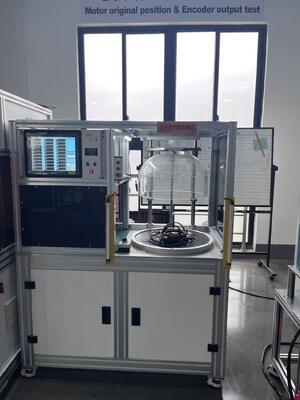

How To Judge Quality Of Motor Stator Armature After Winding Welding Analysis WIND-DTS-120



Testing item:

In generator staotr manufacturing, testing is the quality checking process after

paper inserting, wave winding, coil inserting, forming,

all the testing items including DC resistance/Inductance/Turn to turn insulaiton/ Insulation resistance

/Interphase insulation/Interphase Hipot/ Hi Pot/ Balance ofresitatnce can be conducted alone or together.



1)DC resistance test

Testing range:0.01W - 1000W

Testing loop:6 loop(scalable)

Tolerance:±0.5 %

Testing method:Four points, with auto ambient temperature correction function



2)Inductance test(including 3 phase balance test)

Testing range:10mH – 500mH

Testing loop:6 loop(scalable)

Tolerance: ±2.5%

Testing method:Four points



3)Turn to turn insulation

Pulse high voltage: 100V-3000V (100V / step)

Pulse peak: 0.5msec

Sampling frequency: 1-40 MHZ

Testing loop:6 loop(scalable)

Tolerance: ±2.5%

Judging method: area difference judgment (sensitive to inductance and energy loss)

Standard waveform is White,OK waveform is Green, NG waveform is Red



4)Insulation resistance

Voltage:DC500V /1000V

Testing time:1-10s(adjustable)

Judging range:1-1000 MW

Tolerance: ±2.5%



5)Interphase insulation

Voltage:DC500V /1000V

Testing time:1-10s(adjustable)

Judging range:1-1000 MW

Tolerance: ±2.5%



6)Interphase hipot

Voltage:AC100-3000V (100V/step)

Testing time:1-10s(adjustable)

Judging range:0.1 mA -- 20 mA

Tolerance: ±2.5%



7)Hipot(with arc detection)

Voltage:AC100-3000V (100V/step)

Testing time:1-10s(adjustable)

Judging range:0.1 mA -- 20 mA

Tolerance: ±2.5%



8)Balance of resistance

Test method: DC resistance sampling

Testing time:0.1s

Judging method:percentage method adopted to judge the difference of DC resistance between windings.



2.Testing time

Item DC resistance Balance of resistance Turn to turn short circuit Insulation resistance Hipot Interphase insulation Interphase hipot
Parameter 0.05s/loop 0.1s/time 1 impulse/ time 1s/time 1s/time 1s/time 1s/time
Time 1.5s/6 loop 0.1s 1s 1s 1s 1s 1s




3.Testing video
