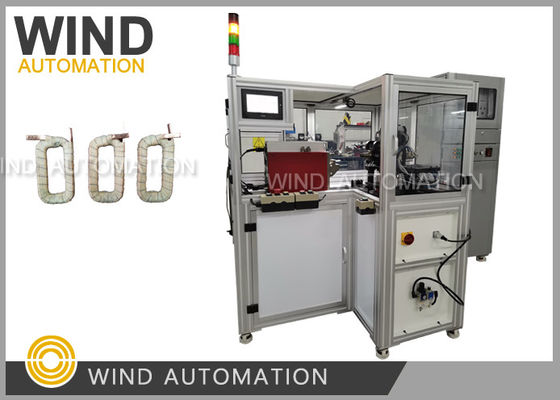

Ultrasonic Hairpin Winding Machine For Field Coi Lead Wire Soldering Fuser Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Winder Station: | Two Or Four Stations | Stator OD: | ø10~120mm |
|---|---|---|---|
| Stack Height: | 10~100mm | Wire Size Range: | 0.1mm~1.0mm (AWG18 To AWG38) |
| Automatic Type: | Fully Automatic Can Handle Thin Wire Thick Wire | Machine Color: | White Or Per Customer Requirement |
| Winding Speed: | 60RPM To 600RPM | After Sales: | Engineers Available To Service Machinery Overseas |
Ultrasonic Wave Metal Welding For Field Coi Lead Wire Soldering Fuser Machine
(1) Application
Metal material
(2) Advantages
1. Welding resistance is 1/3 of the common welding or revet press method
2. No heat hurt the workpiece surface
(3) Parameter
|
Bracket |
L1A00A55(63mm)
L1A00A56(100mm)
|
|
Length |
652.2mm (25.5 in)
|
|
Height |
329mm(13.0 in) Max Up
281mm(11.0 in) Max Down
|
|
Width |
Bracket main body203mm(8.0 in)
Base 262mm(10.3in)
|
|
Weight |
27.1KGS(60lbs)
|
|
Stroke |
48mm(1.9in)
|
|
Tooling strech length |
145mm(5.7in)
|
(4) Feature
Equipment technical parameters:
rated power: 4KW
resonance frequency: 20KHz + 300Hz
amplitude adjustable range: 1um~ maximum amplitude
adjustable range of pressure: 5 ~ 70psi
welding time: 0.5+0.1s
welding cycle: 1.8+0.3s
outline size (unit: mm): 374 (L) X262 (W) X329 (H)
device weight: 23Kg
cylinder stroke: 48mm
parameters of ultrasonic generator:
operation interface: touch screen
power: 4KW
outline size (unit: mm):564 (L) X444 (W) X142 (H)
weight: 16Kg
rated current: 22A
rated voltage: 220V (customers provide 220V + 10%~7% power supply,
and no voltage regulator is needed in this voltage range).
other parameters:
tracheal interface diameter: dry and clean compressed air 0.6MPa. The diameter of the interface is 8mm
power plug specification: large three-circle standard plug
communication interface form: RS232/RS485
PLC butt diagram:
specification: double horn and horn size
The length of the connection line of the 4.3.6 control box and the frame is 5M
