Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02

Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02

China Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02 supplier
Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02 supplier Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02 supplier

Large Image :  Commutator OD Below Armature Testing Equipment 60mm Starte WIND-ATS-02

Product Details:

Place of Origin: China
Model Number: WIND-ATS-02

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Armature Slot: Up To 36slots
Working Station: Double Station Commutator OD: <60mm

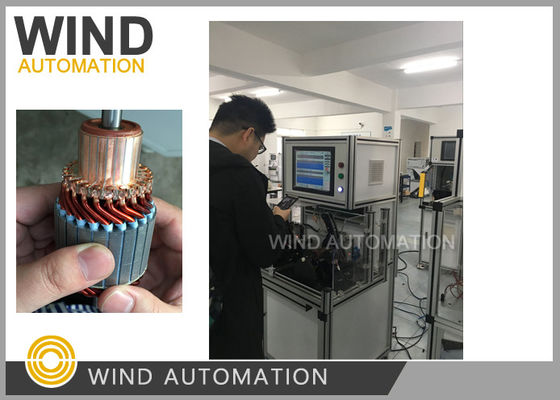

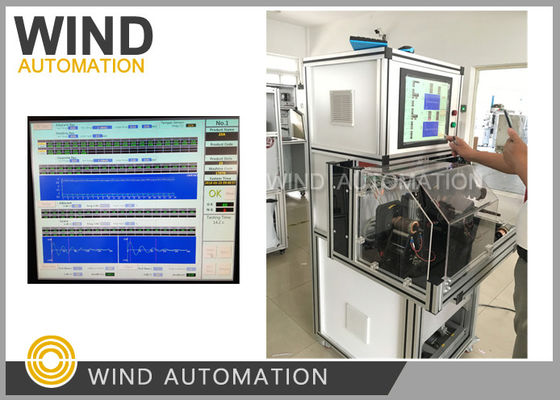

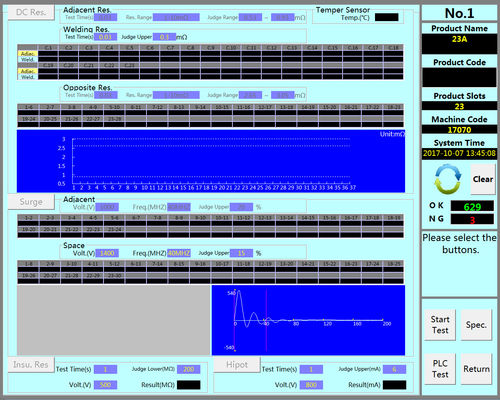

Testing Item Content Display: Test Result Intuitive Display On Screen One By One Armature Slots: 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)
High Light:

armature testing machine


armature tester

Auto Positioning 23 Slots Automobile Automotive Car Motor Starter Armature Testing Machine
Test the car starter armature slots upto 36 slots after welding or turning process
covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)
1. Automatic positioning, the operator no need to check initial positioning manually,
    Make the testing convenient and easier.
2. 100% Satisfied feedback from starter armature manufacturers.
Technical Data:
1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)
    Four-terminal measurement to ensure accuracy
2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)
   Six-terminal measurement to ensure accuracy
3. Cross resistance 0.01mΩ-10mΩ
    Four-terminal measurement to ensure accuracy
4. Surge 100-1000V (100V/time)
    Pulse crest:0.5u sec, Frequency 1~40MHz
    Standard waveform is Write, OK waveform is Green, NG waveform is Red
5. Isolation resistance DC 500V
   Testing time:1~10s (0.1s/time)
    Accuracy: ≤±5%
6. Hipot AC 100-1000V
   Testing time:1~10s (0.1s/time)
   Armature commutator bars ≤ 36 bars
   Testing panel cycle time: 8~9s (according to 33 bars)
   13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)
Main Configuration:
15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder
Pneumatic parts:Airtec
Power: AC 220V,50Hz
Air pressure:0.4~0.6MPa
Dimension: 950mm*1250mm*580mm
HS Code:9030390000
Question and Answer:

Now we produce armatures with 29 slots, but we know some armatures with 33 slots and even 38 slots. Does the machine has capacity to test armatures with this quantity of slots?
Standard machine WIND-ATS-02 can test with most 36slots only

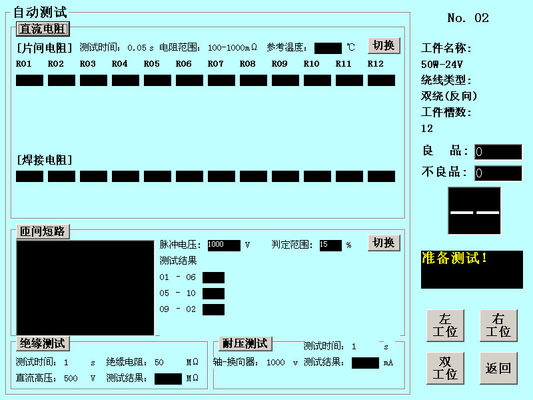

All the slots testing data will be displayed separatedly with identification on the screen?

Is it possible to have three languages on the machine? Portuguese, English and Mandarin
English and Mandarin
Please describe the tests that the machine is able to do

1. Bar to bar resistance (Inter-chip resistance of two commutator bars)
2. Welding resistance (To check the welding quality, the smaller the better)
3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)
4. Surge (Between the turns of the coils, comparing waveforms)
5. Isolation resistance (Resistance of the coils and stack core)
6. Hi-pot (High voltage between the coils and armature stack core)

How many different recipes we can setup and save on the machine?
510 sets recipes

Please describe the calibration procedure, short description
Use standard resistance to calibrate

Is there any kind of restriction due to the size of the armature?

Use different fixture to adapt to

What is the average time for one test of one armature?

About 15s' (including initial auto positioning)
Please decribe to us the main parts brand on the machine

Sampling Chip: BB(USA import)
Relay:NAIS(Jpan Panasonic)
High voltage relay:Meder (Germany import)
Pneumatic parts:Airtac
What is the warranty time and terms?

15 months from date of B/L,please refer to attached after sales details

Explain to us the welding resistance test

Six wiresl balancing measurement method to ensure accuracy

Please tell us the size na weight of this machine

Net weight 150KG Dimension Dimension: 950mm*1250mm*580mm

What is the Installed power of the armature tester?


Is the machine 50Hz or 60Hz?

50Hz or 60Hz, It's OK , no effect of testing

What is the voltage?

If I put an armature with short circuit, after the machine refuses it, do I have to resetup the machine?

You don't have to reset up, you can test the next armature directly

Does the machine has conection to the net? With this we can save the testing data in our server, make remote access....

Yes,machine can have this function

Is it possible to add working instruction in the machine? Like a PDF file or similar


Is it possible to print the test results?

Yes, you need a printer by yourself

Do we have the possibility to chose which test we want to make?

Yes, you can choose which test item to make

Does the armatue anaylser has a communication port that is able to connect to a fiber laser printing machine and send serial number to be printed on the part?

Yes, machine can have this function
