Diesel Starter Armture Coil Hairpin Winding Machine For Car Starter Armature
Product Details:
|
Detailed Product Description
| Condition: | New | Working Station: | Combined Function Machine One Station |
|---|---|---|---|
| Handled Wire Size: | Starter Round Conductor 1.8mm To 3.4mm | Hairpin Forming Process: | Straighten Alignment, Peel Enamel,cutting And Forming, Unloading |
| After Sales: | Engineers Available To Service Machinery Overseas | HS Code: | 84798110 |
Automobile Round Wire 3.4mm Hairpin Coil Winding Machine For Car Starter Armature WIND-AWF-R
Application:
| Round wire | Gauge up to 3.4mm (AWG8) |

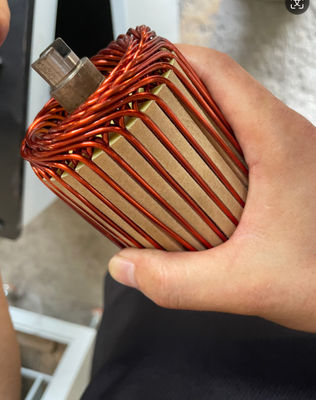

| Automobile | Diesel starter armature |
| Starter motor | Oil pump motor |
| Vehicle family | Car starter motor armature |
| Motores de arranques |
Advantages:
1. High efficiency, Cycle time Around 3s/pc
2. Round wire is easier than rectangle wire to form,
3. Paint peeling and wire shaping machine Wind Automation had handled up to AWG8 (3.4mm)
Configuration:
Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components
| Control device | Mitsubishi PLC |
| HMI | Weinview touch screen |
| Imported enamel stripping | Korea SPG enamel remover |
| Penumatic unit | Airtac |
| Elecronic unit | Schneider |
Parameter:
Voltage: 380V
Presure: Min 0.5Mpa
Wire diameter 1.8mm to 3.4mm (AWG8 ~ AWG13)
Wire feeding length: 0~250mm
Efficiency: 2.3s/pc
Power: 500W
Weight: around 700KGS
Dimension: 1700mm*600mm*1650mm
Please click below link to view video
