Muti Pole BLDC Motor Winding Machine Fast Than Three Head Winder

China Muti Pole BLDC Motor Winding Machine Fast Than Three Head Winder supplier

Large Image :  Muti Pole BLDC Motor Winding Machine Fast Than Three Head Winder

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-TSM

Payment & Shipping Terms:

Price: Negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: CE
Working Station: Single Station Winding Speed: 300RPM To 500RPM According Wire Gauge
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
After SalesWinding Speed: Engineers Available To Service Machinery Overseas
High Light:

needle winder

,

motor stator winding machine

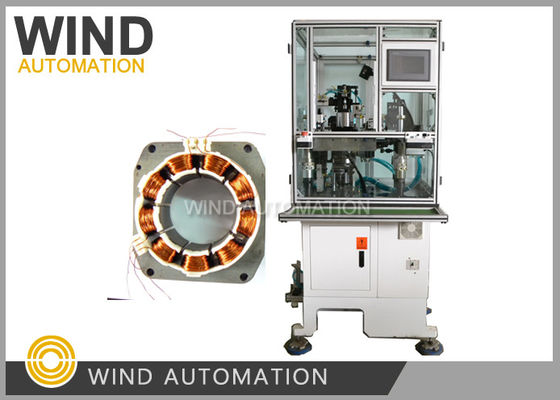

Muti Poles BLDC Motor Stator Needle Winding Machine Fast Than Three Head Winder WIND-3A-TSM







Application:



Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator



compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or



18 poles







Advantages:





Fast as three head winding



machine



3 needles wind 3slots at same time,



wider can finish the winding in3 times for 9poles BLDC stator





Winding Range



3 phase BLDC motor with same winding way for each phase,



Especially suitable for thick wire diameter around 0.8mm (AWG20)





Motor Applciation



Sewing Machine,Air conditioning compressor, Refrigerator



compressor,water pump automotive application , fuel pump









Feature:



Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator



Its winding track is in square shape,It does wires winding and arraying at same time and automatically.



The slots needle winding, arraying,indexing,place bridge wire,cut wires are fully automatically.







Parameter:



Wire diameter:0.08~1.2mm (AWG17~AWG39)



Stator ID:15~65mm



Core length:7-110mm



Turns No.0-99999



Operation option: stepping/Auto



Stator poles: 6 poles, 9 poles, 12 poles,18 poles (Customized)



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Weight: about 450kgs



Dimension: 1600(L)x1100(W)x1400(H)mm







Question and Answer:





1. Which type of stator needle winding shall we select for our stator in attached drawing?



   The winding machine WIND-3A-TSM with winding arrraying indexing servo device

   and angle swing cam device is very suitable for winding your stator metioned in drawing,

   it is very stable in winding big and small wire , heave or light BLDC motor compressor stators.


2. Can you also estimate the winding period of our design,  how many stators can we produce

    in one hour?



   Per your winding data Number of turns 27, wire diameter 0.8mm,



   the winding speed we suggest is 300RPM, and it take about 1mintutes to get 1pc wound stator,



   In one hour you can get more than 60pcs





3. What's the material list we shall provide for machine trail?



   Below samples are needed for machine manufacturing and commissioning:



   1. Stator stack 5pcs without winding



   2. Wound stator 1pc



   3. Copper wire 1 roll enough for winding 15pcs stators







Please click below picture to view video



Muti Pole BLDC Motor Winding Machine Fast Than Three Head Winder





BLDC Motor is widely used in everyday appliances, automotive industry, aerospace, consumer



electronics, medical electronics, industrial automation and other devices and instruments. As the name



implies, BLDC uses electronic commutators directly without using a commutator brush with a mechanical



structure.





BLDC has many advantages over brushed motors, such as:


1. Can obtain better torque speed characteristics


2. High-speed dynamic response


3. High efficiency


4. Long lifetime


5. Low noise


6. High speed.


In addition, BLDC's superior torque and form factor make it more suitable for applications where the motor



itself have requirement on weight and size.
