12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire

China 12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire supplier
12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire supplier 12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire supplier

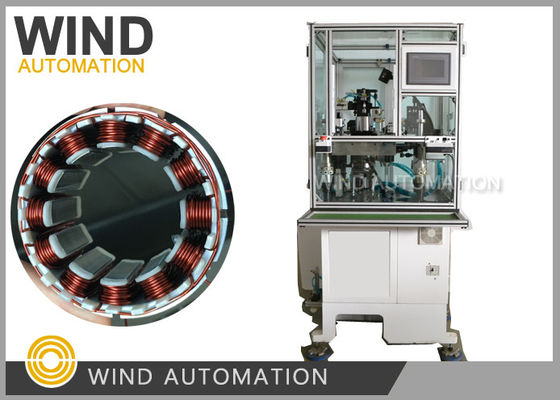

Large Image :  12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: CE
Arraying: Winding And Arraying At Same Time Max Wire: 1.13mm AWG17 Copper Wire
Automatic Type: Fully Automatic Can Handle Thin Wire Thick Wire Machine Color: White Or Per Customer Requirement
After SalesWinding Speed: Engineers Available To Service Machinery Overseas

12 Slots BLDC Motor Stator 1.13mm AWG17 Copper Wire Needle Winding Machine WIND-3A-TSM







(1) Application



Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator



compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or



18 poles







(2) Advantages





Fast as three head



winding machine



3 needles wind 3slots at same time,



wider can finish the winding in



2times for 6slots stator



3times for 9poles BLDC stator



4times for 12slots





Winding Range



3 phase BLDC motor with same winding way for each phase,



Especially suitable for thick wire diameter above 0.8mm (AWG20)



Recently handled 1.13mm AWG17





Winding and Arraying



Arraying can achieve compact winding, even resistance and better motor



performance









(3) Feature



Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator



Its winding track is in square shape,It does wires winding and arraying at same time and automatically.



The slots needle winding, arraying,indexing,place bridge wire,cut wires are fully automatically.



The needle winding machine is very suitable for small slot width and high slot filling rate stator production,



To get better efficiency and better motor product.







(4) Parameter



Wire diameter:0.08~1.2mm (AWG17~AWG39)



Stator ID:15~65mm



Core length:7-110mm



Turns No.0-99999



Operation option: stepping/Auto



Stator poles: 6 poles, 9 poles, 12 poles,18poles (Customized)



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Weight: about 750kgs



Dimension: 1600(L)x1100(W)x1400(H)mm







Question and Answer:



1. Which type of stator needle winding shall we select for our stator in attached drawing?



    The winding machine WIND-3A-TSM with winding arrraying indexing servo device


    and angle swing cam device is very suitable for winding your stator metioned in drawing,

    it is very stable in winding big and small wire , heave or light BLDC motor compressor stators

2. Can you also estimate the winding period of our design, how many stators can we produce in

    one hour?



   Per your winding data Number of turns 27, wire diameter 0.8mm,



   the winding speed we suggest is 300RPM, and it take about 1mintutes to get 1pc wound stator,



   In one hour you can get more than 60pcs



3. What's the material list we shall provide for machine trail?



    Below samples are needed for machine manufacturing and commissioning,



    1. Stator stack 5pcs without winding



    2. Wound stator 1pc



    3. Copper wire 1 roll enough for winding 15pcs stators







Below is example of wound stator



12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
