Four Needle Winding Machine For Fan Motor Shaded 4pole Segment Stator

China Four Needle Winding Machine For Fan Motor Shaded 4pole Segment Stator supplier

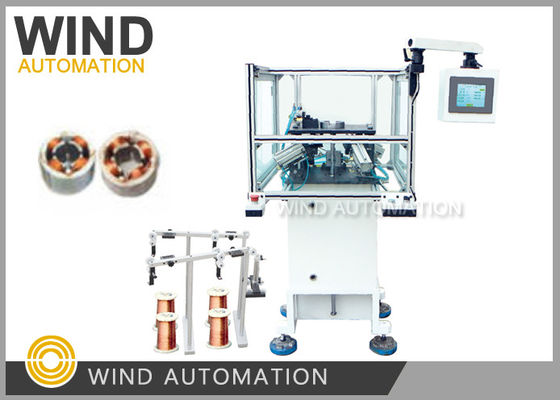

Large Image :  Four Needle Winding Machine For Fan Motor Shaded 4pole Segment Stator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-1A-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Detailed Product Description
Slot Type: In-slot BLDC Motor Shaded Motor Stator Poles: 4 Poles Brushless Staor
Winding Efficiency: One Station 4 Needles Wind, About 2 Minutes/pc Automation Type: Fully Automatic
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

needle winder

,

bldc winding machine

Four Needle Winding Machine For Fan Motor Shaded 4pole Segment Stator WIND-1A-TSM







(1) Application



Dedicated machine for 4poles shaded motor stator winding,



a. 4pcs Needles wind 4slots at same time, the 4poles segmented motor are usually shaded pole motor



b. 4 Sets automatic clamp and cut wire device ensure the automated process and efficiency



c. It cost about 2 minutes to get 1pc wound stator







(2) Advantages



1. Wind 4 slots per time, fast



2. Automatic winding, automatic cutting four poles per time





Automatic stator needle winding machine application



Four poles shaded motor stator winding





Winding Nozzle 4pcs



4poles wind at same time at 400rmp





4ploles stator needle winding



Dedicated machine for 4poles shaded motor



stator winding









(3) The story between 4 needles Winding machine WIND-1A-TSM and one China motor



      manufacturer



This machine one local clinets had ordered 50pcs from us,



Few Years ago an China motor manufacturer order 1pc WIND-1A-TSM at the first time,

After use the machine to wind their fan ventilator 4poles motor stator,they found this 4 needle winder is

fast and very suitable to save copper wire comparing to hand made winding

(If manual winding and insertion , the coil height too high),

They ordered 5pcs again, and then every year they put repeated order,

Because the saving from the copper wire in 4~5 months is about 1 machine cost for the local motor

manufacturer







(4) Stator Winder Configuration



Big power Stepper motor



Mitsubishi PLC



Embedded human - machine interface



AIRTAC cylinder







(5) Parameter



Wire diameter:0.08~1.00mm



Stator ID:15~65mm



Core length:7-90mm



Turns No.0-99999



Operation option: stepping,Auto



Stator poles: 4poles



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Dimension: 1550*900*1450mm



Weight: about 450kgs







Motor winding machine manufacturer sample needed:



1. Stator stack samples each 5pcs

2. Copper wire gauge each 1roll

3. Stator lamination drawing and winding drawing




Please click below picture to view video



Four Needle Winding Machine For Fan Motor Shaded 4pole Segment Stator
