Commutator Armature Coil Winding Machine For Vacuum Cleaners Hammers Power Tool Motor

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

Commutator Armature Coil Winding Machine For Vacuum Cleaners Hammers Power Tool Motor

China Commutator Armature Coil Winding Machine For  Vacuum Cleaners Hammers Power Tool Motor supplier

Large Image :  Commutator Armature Coil Winding Machine For Vacuum Cleaners Hammers Power Tool Motor

Product Details:

Place of Origin: China Best No Hook Commutator Armature Winder
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-ST-TD2B

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Armature Commutator Type: No Hook Commutator,Slotted Type Riser Type Commutator Armature Manufacturing: Vacuum Cleaner Hammers Power Tool Armatures
Winder Flyer: Double Double Flyer Lap Winding Machine Max Wire Handled: 1.35mm (about AWG16)
Armature Rotor Stack: Straight Stack Or Skew With Different Initial Positioning Way Operation Method: Step, Auto, JOG
High Light:

stator coil winding machine

,

automatic coil winding machine

No Hook Commutator Armature Winder For Vacuum Cleaners Hammers Power Tool Motor WIND-ST-TD2B







Application:



Armature winder for slotted type commutator armature,Vacuum cleaners hammers power tool







Advantages:



1. Armature winder WIND-ST-TD2B is dedicated machine for winding slotted type



    no hook commutator armature,obtain good adaption for slot type commutator with groove



2.  No need to work with special designated slotting undercutting machine



3.  Comparing to hook type armature, slotted type armature save copper wire and reduce cost,



     but winding  slotted type armature can be a challenge



     because slotted type commutator armature winder is different from hook type armature winder



     WIND-ST-TD2B is the best winder for slotted type commutator in China during machine manufacturers



4. 98% yield rate above assured when the slot commutator quality is good







Winding Machine Operation process:



Operator only need to load and unload armature, other actions such as hooking, winding, indexing and



cutting are automatcial process



Winding and welding are the two most improtant process in building motors, WIND-ST-TD2B winding

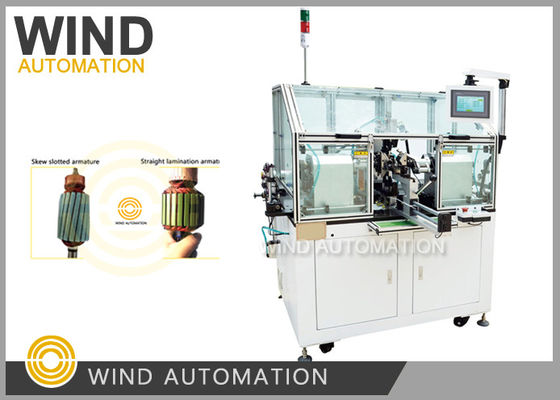

machine is mainly for automatical lap winding a slotted type commutator armature as below:



1. Straight stack armature and



 2. Skew lamiantion rotor





Lap winding with



double flyer wire



gauge range





Usually 0.20~1.2mm, Max machine handled 1.35mm (about AWG16)





Armature



commutator type





Slotted type riser type not hook type





Automatic or



semi automatic



You only need to load and unload armature, other actions such as hooking,



winding, indexing and cutting are wound by machine automatcially



Wire size and Wire slot size(Length,width and depth), the wire slot should have



enough space for the wire to stay inside Wire size 17AWG (1.15 mm), Slot: blade



width 1.143, length=7.14 mm, depth= 5.95 mm



and we think if the depth is bigger, the wire can acquire more space to stay inside



slot, while depth is more, length is more too,



4.2 Could you please check if the commutator was pressed consistanctly each time



at same location according armature stack? The push pin witness marks on the



commutator are consistent.



Because armature commutator and stack position is very important for indexing



consistantly Fully automatic winding machine with Japan as the pioneer, the rising



demand for high quality products and low labor cost, operator only need to ensure



enough raw materials, and replace them in time without workpiece or copper wire,



so that continuous production can be ensured. The number of shaft is usually high,



so as to achieve high efficiency production. A machine with enough automation can



meet the requirements of an employee handle two or three winding machines at the



same time.









Please click below picture to view video



Commutator Armature Coil Winding Machine For  Vacuum Cleaners Hammers Power Tool Motor







Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
