1.8mm AWG13 Big Copper Wire Coil Winding Machine For Brushless Motor Stator
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Coil Winding And Tapping: | Not Only Automatically Winding,but Also Automatically Tapping | BLDC Motor Stator Poles: | Big Wire Size Motor Up To 1.8mm (AWG13) |
|---|---|---|---|
| Wire Gauge: | Min. 0.1mm (AWG38) | Automation Type: | Fully Automatic Vertical Winding |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | motor coil winding machine,automatic coil winding machine |
||

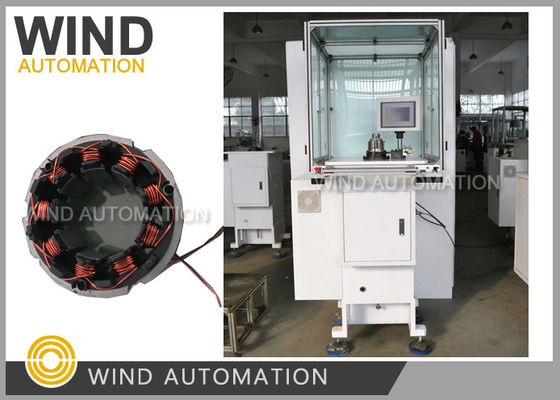

1.8mm AWG13 Big Copper Wire Coil Winding For Brushless Motor Stator WIND-2A-TSM
Winder Application:
Inslot Stator such as fan motor, washing machine motor, compressor motor, stepper motor which requires
winding and arraying
BLDC Stator Needle Winding Advantages:
1. Handle Big size wire up to 1.8mm (AWG13)
2. Delta PLC, Delta Servo System
3. Easy Operation with Human-Machine interference
4. Rich experience in 6,8,9,12 tooth can ensure the good performance of winding machine
and handled types of 6 tooth poles stator which need tapping
Parameter:
Wire diameter: 0.10~1.8mm (AWG13 to AWG38)
Stator ID:>19mm
Stack height:<100mm
Turns No.0-99999
Operation option: stepping/Auto
Winding speed: 400~450 RPM
Stator poles: 6 poles, 8 poles, 9 poles, 10 poles, 12 poles, 14 poles,18 poles (Customized)
Air pressure:5~7kg/square centi-meter
Power:2KW, AC220V 50/60Hz
Weight: about 450kgs Dimension: 1600(L)x1100(W)x1400(H)mm
