CE Armature Conductor Hairpin Coil Winding Machine Auto Industry Forklift Truck Starter

China CE Armature Conductor Hairpin Coil Winding Machine Auto Industry Forklift Truck Starter supplier

Large Image :  CE Armature Conductor Hairpin Coil Winding Machine Auto Industry Forklift Truck Starter

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-AWF-F
Contact Now
Detailed Product Description
Condition: New Working Station: Wire Forming Combined Machine
Handled Wire Size: Starter Flat Wire Conductor 2.7mm ~ 7.0mm Hairpin Forming Process: Straighten Alignment, Peel Enamel,cutting And Forming, Unloading
After Sales: Engineers Available To Service Machinery Overseas HS Code: 84798110
High Light:

armature coil winding machine

,

rotor winding machine

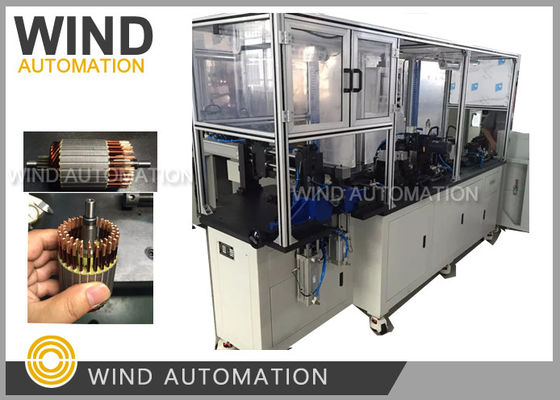

Auto Industry Forklift Truck Starter Armature Conductor Hairpin Coil Winding Machine WIND-AWF-F







Application:

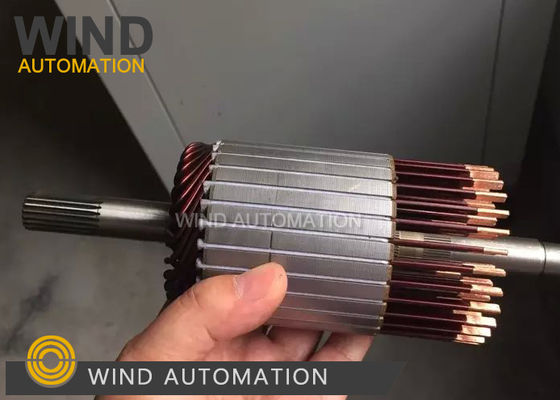

WIND-AWF Series flat wire forming machine produce conductor for starter armature hairpin of



forklift truck, vans,  and vehicles diesel







Advantages:



1. High efficiency, Cycle time Around 3s/pc



2. Mitsubishi PLC, Weinview touch screen,Airtac cylinder and valve,Schneider Electrical components



3. Flat wire dedicated machine to form starter motor conductor of forklift truck,vehicles diesel







Parameter:



Power Supply Voltage: 3Φ-380V±10% 50H



Air source Pressure: 0.5~0.7Mpa



Varnish Removing Length: 0~50mm



Wire Feeding Length: 150~400mm



Rated Capacity: 1kva







Configuration:



Control device Mitsubishi PLC
HMI  Weinview touch screen
Imported enamel stripping Korea SPG enamel remover
Penumatic unit Airtac
Elecronic unit Schneider







Please click below picture to view video



CE Armature Conductor Hairpin Coil Winding Machine Auto Industry Forklift Truck Starter
