5Slot Armature Rotor Winding Machine DC Brush Motor Four Station WIND-ODD-1

China 5Slot Armature Rotor Winding Machine DC Brush Motor Four Station WIND-ODD-1 supplier

Large Image :  5Slot Armature Rotor Winding Machine DC Brush Motor Four Station WIND-ODD-1

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ODD-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Coil Winding Type: Armature Lap Wire Winding Motor Type: Power Tool, Toy Motor With 3slots, 5 Slots
Winding Method: Flyer Winding Not Needle Winding Station: Four
Machine Color: White Or Per Customer Requirement Winder Application: Automotive Parts,Small Dc Motor, Windshield Washer Pump, Door Lock Actuator
NCM No / HS Code:: Coil Winding Machine 8479811000 After Sales: Engineers Available To Service Machinery OverseasAutomotive Parts Windshield Washer Pump, Door Lock Actuator
High Light:

armature coil winding machine

,

rotor winding machine

5Slot Armature Rotor Winding Machine DC Brush Motor For 3,5 Slots WIND-ODD







Application:



Micro Motor with 3 slots, 5 slots, even slots covering power tool, toy,

windshield washer pump, door lock actuator,automotive parts







Advantages:

1.Flyer Winding speed 3000RPM

2.Handle hundreds types of small armatures, attached wound armature example

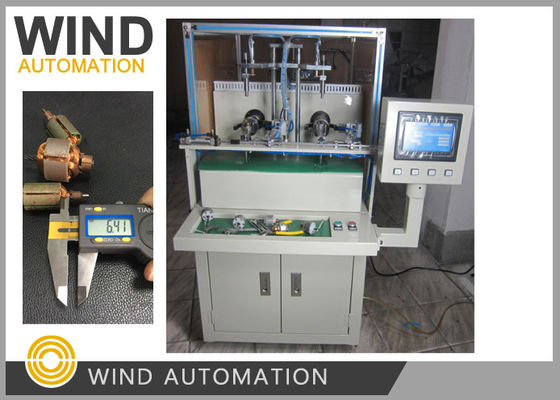

5Slot Armature Rotor Winding Machine DC Brush Motor Four Station WIND-ODD-1





Main parts of winder:

Spindle Motor Servo motor Delta
Indexing Motor Stepping Motor China Local Brand Oukeda
Actions Cylinder Airtac
Arraying device Rolling ball screw
Touch screen FATEK
PLC Self-developed PLC







Parameter:



1.Wire range: 0.07~0.27mm



2.Air pressure: 4~6kg/cm2



3. Machine power: 50/60Hz AC110V±10%(single phase)



4.Air supply pressure: 0.4MPa to 0.8MPa



5.Voltage: AC220V 50/60Hz



6.Working environment temperature: 0℃~45℃



7.Working environment humidity:10%~60%(no condensation)



8.Machine dimension:1100*1200*1300mm



9.Package dimension:1200*1200*1500mm



10.Machine weight:320Kg



11.Package weight:430Kg







Information needed when you send inquiry:



1. Winding diagram include wire diameter



2. Armature lamination drawing





5Slot Armature Rotor Winding Machine DC Brush Motor Four Station WIND-ODD-1









Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
