Flier Type Armature Winding Machine Fully Automatic 4 Pole Lap Coil Winder

PMDC Rotor Riser Commutator Armature AWG16 To AWG30 Copper Wire Winding Machine

WIND-ST-TD2B







Application:



Slotted type commutator armature winding



The WIND-ST-TD2B full automatic rotor winding machine is a double fly winding machine specially



designed for producing slot type commutator rotor, which is suitable for high-speed winding of medium



and coarse diameter rotor. The machine adopts automatic clipping mechanism and auxiliary wire insertion



method, which greatly improves the winding speed of grooved rotor. This machine is widely used for



winding of DC and series motor rotor. The suitable winding diameter 0.25mm~1.2mm. widely use in thin



wire line slots rotor and large diameter slotted type commutator rotor, which is suitable for the automatic



winding of odd and even numbered slots grooves.







Competitive Advantages:



1. For armature with thin copper wire,



  Machine had good feedback of winding AWG30(0.25mm) copper wire diameter armature



2. For armature with thick wire, machine WIND-ST-TD2B can handle AWG16 (1.35mm) armature



3. No need to work with special designated commutator slotting machine



4. 98% yield rate above assured when the slot commutator quality is good



5. Till now it is the best machine in China for winding slot type armature







Parameter:



Power supply: 220V, 50HZ



Motor: Winding Mitsubshi 1000W servo motor



Arraying Mitsubshi 400W servo motor



Indexing Mitsubshi 400W servo motor



Wire diameter:0.45mm~1.25mm



Unit OD:70~250mm



Spindle: 0~1500rpm



Turns No.0-999



Air pressure: 0.5-0.7Mpa



Pneumatic: Airtac







Instruction for Use:



Manually put on armature and press 'Start' botton, machine will do clamping, hooking ,windinging, indexing



automatically and repeatly until one armature was fully wound.



WIND-ST-TD2B winding machine is to do winding for the armature with riser type commutator.



It has double flyer to make the winding and with auto wire cutting, clamping structure, assisting wire



inserting way to upgrade the winding speed.





Item	Name	Type	Quantity
1	Spindle rotate belt	165L	1pc
2	Indexing rotate belt	182XL	1pc
3	Belt	102XL	2pcs
4	Fuse	RT18-32 2A	2pcs
5	Fuse	RT18-32 10A	2pcs
6	Ceramics wire wheel	∮6	2pcs
7	Sensor	AL-13D-02	1pc
8	Sensor	AL-11RL-02	1pc
9	V bearing		1pc
10		FDS016	1pc
11	Pail for wire		1pc
Tool
Item	Name	Type	Quantity
1	Innder hexagon spanner	8pcs	1set
2	Open spanner	13-16mm	1pc
3	Slotted screw	1.5''	1pc
4	Cross screw	4''	1pc
5	Wrench	8pcs	1set
6	Tweezers	stainless steel	1pc
7	Diagonal Pliers		1pc
			1pc







Ask and Answer:



Ask:



Are they flier-type winding machine? I would like to understand how your winding machine design can



overcome the problem of traditional winding machine that has been designed for 2 pole motor.



The winding coil in a 4 pole lamination has a smaller angle than a 2 pole lamination across the lamination



slot. Therefore, 4 pole winding machine use a smaller angle wire guiding head to guide the magnet wire to



slide into a 4-pole lamination slot. So, the wire will seat on the side of the slot instead of seating on the



bottom of the slot. For a 2 pole lamination, the guiding head is wider and the wire can be guided to slide



into the bottom of the slot.



If you use a flier type winding machine on a 4 pole or 8 pole armature, do you have any method to guide



the wire to the bottom of the slot first, then go up to the slot opening - tidy and neat.



Answer:

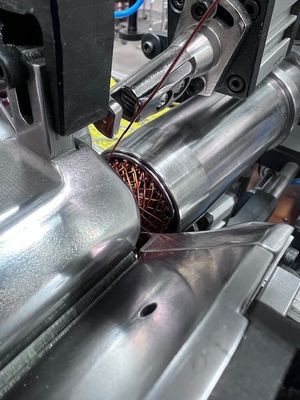

Please click below picture to view video
