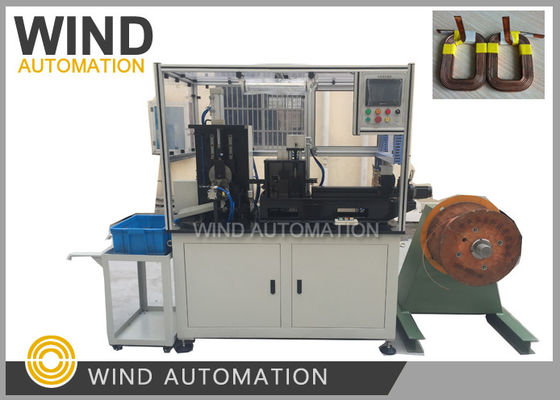

Automatic AC Motor Winding Machine Single Station With Interleave Material

China Automatic AC Motor Winding Machine Single Station With  Interleave Material supplier

Large Image :  Automatic AC Motor Winding Machine Single Station With Interleave Material

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-PCW-F3

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 30working days
Payment Terms: T/T
Detailed Product Description
Winding Direction: Clockwise And Counter Clockwise Winding Variant Application: Starter Motor Stator Of Cars
Working Station: Single Station Automation Type: Winding Coils And Interleave Material
Machine Color: White Or Per Customer Requirement Condition: New
Automatic: Automatic Wire Feeding, Wire Dereeling, Wire Straightener, Paper Feeding And Wire End Bending And Will Run In A Continuous Mode After Sales: Engineers Available To Service Machinery Overseas
High Light:

coil making machine

,

stator coil winding machine

Starter Stator Magnetic Field Coil Winding Conductor Forming And Winder WIND-PCW-F1



Machine working process



The machine can automatically wind the field coil with below process continuously,

Automatic wire feeding→ wire straightener → bend starting terminal→ wire feeding I, →bending→ wire feeding II→ press wire to tooling→ forming→ paper feeding and twisting winding→Wire cutting→ paper cutting→ twisting forming→unloading,

Output : around 15s’ to 30s’ per piece, around 2000pcs per shift/8hours



Machine Construction

1. Wire straighten mechanism,

Comprised of X,Y direction two set Guide wheel straightening

And cylinder, the cylinder pull wire to straighten it.



2. Wire feeding mechanism

Servo motor Delta drive the wire feeding module to feed the wire,

the wire feeding length can be setted on screen, and wire slotting limit can make sure

the wire trace is right



3. Starting terminal bending mechanism

Use cylinder to drive pulley to bend starting terminal,

The bending direction can be left or right



4. Wire bending mechanism

Comprised of press wire device and bending device,

bending direction can be left or right



5. Cutting mechanism

   With special Cutter dedicated for field coil



6. Coil winding and unloading mechanism

Coil winding mechanism comprise of press wire device driven by cylinder,

Rotation device driven by Delta servo motor with reducer’s transmission part,

Tooling, tooling clamp device, ejection device.





The wire feeding mechanism feed the bended wire to fixed position of tooling,

press wire device begin to press the wire, rotation device rotate,

when rotate to setted position the paper will feeded ,

and continue to rotate to setted position, and cut paper, rotate to wind the coil.

The tooling clamping device loose, finshed coil come out and repeated from beginning.



7. Paper guide device

Comprised of paper rack, paper feeding motor and paper press device



8. The machine frame is Aluminum with organic glass



9. Winding machine Main parts



Simens or Delta PLC

Delta servo motor

Weinveiw touch screen



Weight: about 650Kg

Machine dimension: 1,500mm x 900 mm x 1700mm3
