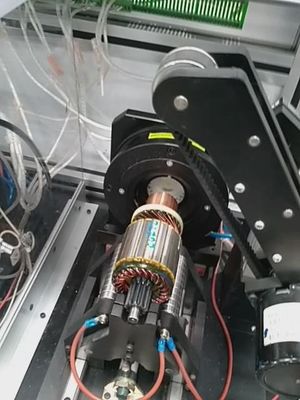

Starter Armature Testing Equipment Automatic Testing Panel Double Station

China Starter Armature Testing Equipment Automatic Testing Panel Double Station supplier
Starter Armature Testing Equipment Automatic Testing Panel Double Station supplier Starter Armature Testing Equipment Automatic Testing Panel Double Station supplier

Large Image :  Starter Armature Testing Equipment Automatic Testing Panel Double Station

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-ATS-02

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Test Item: DC Resistance, Isolation Resistance,Surge,Hipot Armature Type: Starting Motor Armature
Working Station: Double Station Automation Type: Automatic Positioning
Testing Item Content Display: Test Result Intuitive Display On Screen One By One Armature Slots: 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

Starter Armature Analyse Quality Checker Machine Automatic Testing Panel WIND-ATS-02







(1) Application



Starter armature upto 36 slots



covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)







(2) Advantages



a. Automatic positioning, the operator no need to check initial positioning by hand



b. The biggest starting armature manufacturer ordered over 10pcs and 100% satisfaction



c. Testing panel cycle time: 8~9s (according to 33bars)







(3) Technical Data





Test Item





Test Method





Bar to Bar resistance,0.01mΩ~10mΩ

(Out of range display OVER)





Four-terminal measurement to ensure accuracy





Welding resistance,0.001mΩ-10mΩ

(Out of range display OVER)





Six-terminal measurement to ensure accuracy





Cross resistance 0.01mΩ-10mΩ





Four-terminal measurement to ensure accuracy





Surge 100-1000V (100V/time)

Pulse crest:0.5u sec, Frequency 1~40MHz







Standard waveform is Write, OK waveform is Green,

NG waveform is Red





Isolation resistance DC 500V

Testing time:1~10s (0.1s/time)





Range:1~500MΩ

Accuracy: ≤±5%





Hipot AC 100-1000V





Testing time:1~10s (0.1s/time)









(4) Main Configuration



15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder



Pneumatic parts:Airtec



Power: AC 220V,50Hz



Air pressure:0.4~0.6MPa



Temperature:0~45℃



Dimension: 950mm*1250mm*580mm



HS Code:9030390000







(5) FixtureTolerance range



For types of armature, the fixture are needed and tolerance adaption are as below:



1. Armature commutator with same slot bars, the outside diameter tolerance is +4mm



2. When armature outside diameter change, the holding fixture should be changed







(6) Wearing Parts



1.Communication Contact Pins (One year for automatic type, half year for manual loading type)



2. Rubber Ring Fixture







Ask and Answer



Ask:



It’s not clear for me this percentage of 25 – 30%. We know that the surge test is a comparative test by



wave for results. In your manual is telling that the results deviation of 5%. Please explain me better why



the pulse alternates from 1100 to 1050 for example?



Answer:



Surge test use High voltage pulse voltage applied to windings, By decaying and comparing the oscillation



waveform space to determine whether the winding have a problem,



The result is a comparing of sample waveform and tested waveform 's area difference, S1-S0/S0 is the



Percentage, it should be within the 'Judge Uper(%)',



Usually some of our local user, the starter armature manufacturer set it as 25%~30%.



And the pulse voltage is not DC, it is alternating,



For example when you input 1000V, it might be 1100V or 1050V,



Applied voltage result in current, the speed of energy release is different every time, too



So the data showed is just a reference, it will be different every time,



In general, The Surge test result is Qualitative rather than quantitative.
