Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor

China Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor supplier
Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor supplier Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor supplier

Large Image :  Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-RM-10

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: One Station Automation Type: Fully Automatic
Testing Item Content Display: Commutator Surface Armature Commutator: Any Kinds Of Commutator
High Light:

high voltage test equipment

,

armature testing machine

Commutator Roundness Good Communication Testing Device For Brushed DC Motor WIND-RM-10







(1) The purpose commutator roundness testing



If the commutator is not round, this increses the chances of incresed brush wear on the brushed DC



motor armature, as well as an increase in arcing and sparking of the commutator thereby destroying the



commutator surace, Good commutator roundness is very important for the armature performance.







(2) Features



1. The high precision LVDT sensor is used for the roundness measurement, combining the analog and



    digital filtering method into realization a high stability and rapid access to the sensor signal, to ensure



    the high precision of the sensor signal.



2. Stepper motor is used as a driving source of measurement,combined with motor driven high subdivision



    and high-speed pulse, ensuring the motor to run as smooth continous and measurement points



    equidistant distribution.



3. The commuatator slot data recognition algorithm is unique, to ensure that the measurement results of



    the data dones not include the gaps and the gap edge data, to guarantee the authenticity of the



    measurement results.



4. When it measured on commutator bar also complete the detection of roundness quality surface to the



    center axis at the same time, to find more accurate qualtiy armature.







(3) Technical Data





Test item





Test description





Test result





Inside of the Bar film





-10um ~ 10um





< 0.2um





Between slices





-10um ~ 10um





< 0.2um





Edge beat





-20um ~ 20um





< 0.2um





Cicyle beat





-20um ~ 20um





< 0.2um









(4) Competitive Advantages



1. Commutator surface turning quality is one of the importand factors that infulence the performance



   of armature, timely check the turning qulaity of commutator can provide an effective means of control



   the lathing quality.



2. The WIND-RM-10 Rotor roundness tester can deteck the armature commutator roundness fast and



    accurately, it is a fast and direct way to know the state of the armature production, can control the



    product quality timely, control the production process and ensure the armature manufacturing quality.



3. High precision, no rust, rust, acid and alkali, no magnetization, no deformation, good wear resistance,



    the marble is used as a placement platform, V seat is placed on the marble platform, and the placement



    accuracy of the V seat is enhanced. The components (and connecting rod driving parts) drive the rotor



   (and the connecting rod drive parts) with two pairs of leveraged linkage lever mechanism synchronous



   clamp Tight rotor ensures smooth rotation of the rotor, ensuring the accuracy of the test.





   In conclusion, the utility model improves the automation degree of the rotor roundness tester in the



   existing technology, improves the production efficiency, saves the manpower,



   and improves the testing accuracy of the roundness tester.

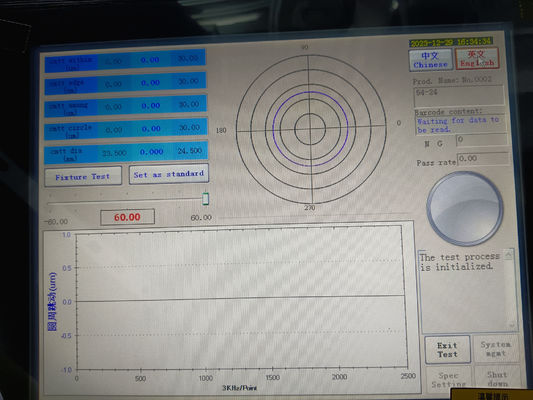

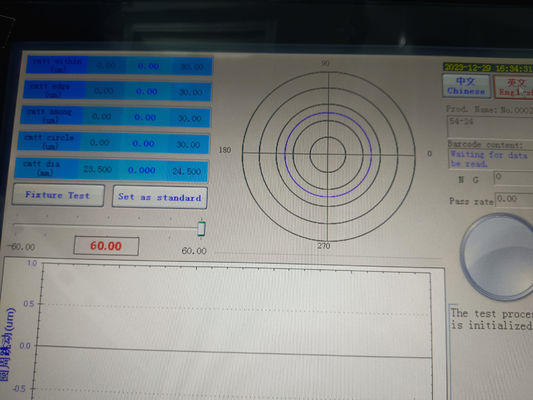

Commutator Roundness Electric Motor Testing Equipment For Brushed DC Motor
