Eight Poles BLDC Stepping Motor Stator Winding Machine With Two Needles

China Eight Poles BLDC Stepping Motor Stator Winding Machine With  Two Needles supplier
Eight Poles BLDC Stepping Motor Stator Winding Machine With  Two Needles supplier Eight Poles BLDC Stepping Motor Stator Winding Machine With  Two Needles supplier

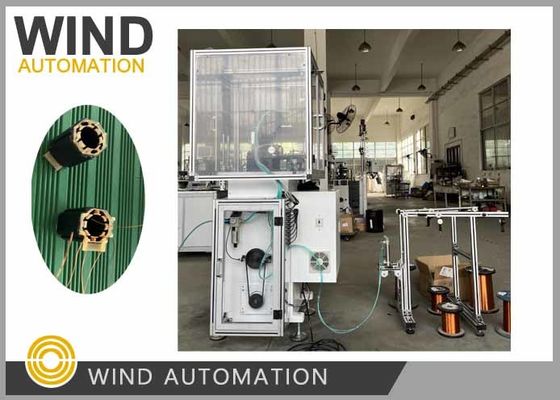

Large Image :  Eight Poles BLDC Stepping Motor Stator Winding Machine With Two Needles

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-1B-TSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Needle No.: Two Needles Wind 2poles Per Time
Working Station: Single Station 8poles Can Be Wound 4times Winding Speed: 300RPM To 500RPM According Wire Gauge
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
After Sales: Engineers Available To Service Machinery Overseas

Eight Poles BLDC Stepping  Motor Stator Winding Machine
Two Needles Wind Slots Winding At Same Time WIND-1B-TSM






Application:


Stepper motor needle winding machine WIND-1B-TSM can wind 2 slots once,


covering 6 poles, 8 poles, 9 poles, 10 poles, 12 poles, 14 poles, 18 poles





Advantages:


Fast and flexible,Stepping motor stator needle winding with 2 slots winding each time


2 Nozzles winding works as a two station BLDC stator winder and stable than 2 station winder machine







Parameter:


Wire diameter: 0.08~0.8mm


Stator ID:15mm~65mm


Stack height:7-100mm


Turns No.0-9999


Operation option: stepping/Auto


Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Custom made)


Air pressure:0.5~0.7MPa


Power:1KW, Single Phase,AC220V 50/60Hz


Weight: about 450kgs Dimension: 1600(L)x1000(W)x1500(H)mm





Configuration:


Mitsubishi PLC


Embedded human - machine interface touch screen


High power stepper motor


Airtac cylinder








Stator winding machine characteristics type 1:
Plz, indicate the model №__WIND-1B-TSM________





Confirmation: yes/no.
If NO, plz indicate your parameter



1 Stator tube diameter 70 mm YES
2 Stator tube width 15 mm YES
3 Number of axies 4 minimum NO
4 Line coordinates tolerance ±0,01 mm YES
5 Angular coordinate tolerance ±0,5 angular minute YES
6 Shaft pitch minimum 100 mm YES
7 Winding speed 10 – 60 winds prm YES,350~400RPM
8 Stator max. Outer diameter 63 mm YES
9 Stator Inner diameter no limits >15mm
10 Maximum length of the stator with the front parts 80 mm minimum YES
11 Minimum length of the stator with the front parts 15 mm YES
12 Stator slots no limits NO,6,8,9,10,12,14,18slots
13 Minimum slot width 0,8 mm YES
14 Working wire diameter 0,063 – 0,315 mm (twin) YES
15 Number of spindles 2 No, 2 nozzles, 1 spindle
16 Number of tensioners 2 YES
17 Control mode Laptop with Software NO,PLC and HMI
18 Power supply 3~380 V (±15%), 50 Hz, 2 kW NO,1~220V,50Hz,1.5KW







Question and Answer:




1. Which type of stator needle winding shall we select for our stator?


    The stator needle winding machine WIND-1B-TSM is very suitable for winding stepper motor with



    8 poles



    Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator

    The winding machine WIND-1B-TSM with winding not arrraying automatic indexing device and angle



    swing cam device is very suitable for winding big and small wire , heave or light BLDC motor stators




2. How is the training to operate the stator winding machine?



    For machine tranining, usually you send one engineer people to our plant to inspect before delivery,



    WIND-1B-TSM is not a complicated machine, if your engineer have experience then you don't need to

    come and we can take some vidoes for you to operate




3. Is the machine from you is switched on and put into operation?


    Yes, machine is switched on from machine side for power on machine and


    Start, Emergency button , Auto/Step swith to operate machine



4. I have not wound stator. Why do you need for wound stator?



   The wound stator can show Shanghai Wind Automation

   the winding diagram which include winding way,bridge wire, terminal wire,

   If you don't have wound stator, please provide winding drawing






Below samples and drawing are needed for machine manufacturing and commissioning:


1. Stator stack 5pcs without winding with insulation cap or isolation paper


2. Wound stator 1pc


3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing





Stepper motors divide a full rotation of the rotor into a number of equally sized “steps,” offering the ability



to quickly position a load and hold it at any one of these steps. Also known as step motors or stepping



motors, these brushless DC motors offer quick, precise positioning and exceptional holding torque.



Stepping technology allows for the use of an open-loop controller – simplifying machine design and



lowering total cost compared to a servo motor system, it is high-performance, brushless, maintenance-



free stepper motors provide precise, extremely cost-effective motion control.

You produce the stepper motor, Wind Automation supply the motor manufacturing machines.





Please click below picture to view video

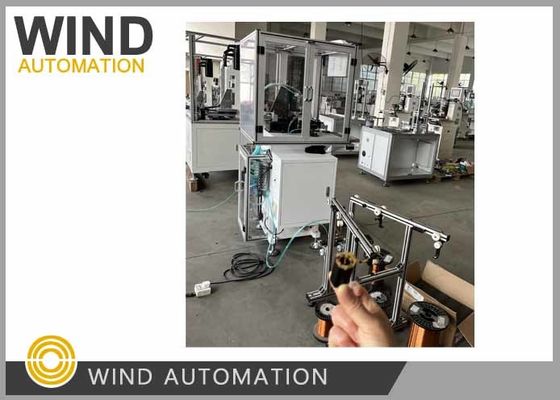

Eight Poles BLDC Stepping Motor Stator Winding Machine With  Two Needles
