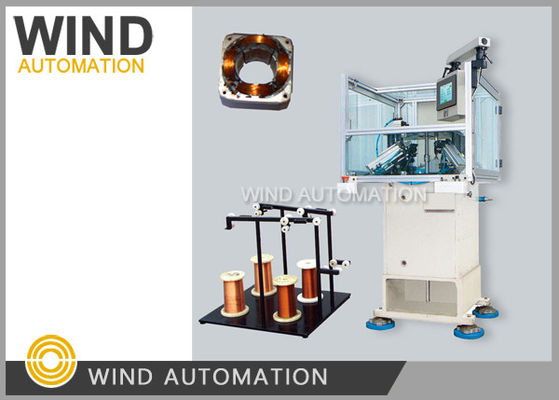

Stator Coil Winding Machine Shaded Four Poles Segmented Motor WIND-1A-TSM

Shaded Four Poles Segmented Motor Stator Coil Needle Winding Machine







Application:



Dedicated machine for 4poles shaded motor stator winding,



a. 4pcs Needles wind 4slots at same time, the 4poles segmented motor are usually shaded pole motor



b. 4 Sets automatic clamp and cut wire device ensure the automated process and efficiency



c. It cost about 2 minutes to get 1pc wound stator







Advantages:



1. Wind 4 slots per time, fast



2. Automatic winding, automatic cutting four poles per time



Automatic stator needle winding machine application	Four poles shaded motor stator winding
Winding Nozzle 4pcs	4poles wind at same time at 400rmp
4ploles stator needle winding	Dedicated machine for 4poles shaded motor   stator winding







Feature:



4 Sets automatic clamp and cut wire device, wind shaded pole motor 4slots at same time,



and cut wires automatically







Stator Winder Configuration:



Big power Stepper motor



Mitsubishi PLC



Embedded human - machine interface



AIRTAC cylinder







Parameter:



Wire diameter:0.08~1.00mm



Stator ID:15~65mm



Core length:7-90mm



Turns No.0-99999



Operation option: stepping,Auto



Stator poles: 4 poles



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Dimension: 1550*900*1450mm



Weight: about 450kgs







Motor winding machine manufacturer sample needed:



Please click below picture to view video
