Payment & Shipping Terms:
|Inside 3'' Of Paper Core:||One Station, Two Combined Machine||Machine Color:||White Or Accordingly To Customer Requirement|
|Controller:||Siemens PLC||Raw Material Size:||Raw Material Width1000mm Diameter 800mm|
coil making machine,
electric motor winding machine

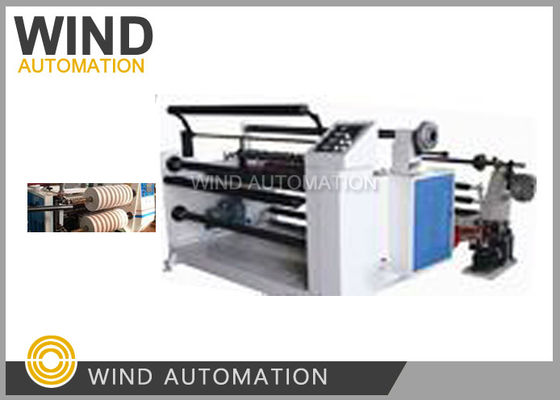

Electrical Motor Insulation Paper Dereeling Machine China Supplier WIND-1000G
Suitable for slitting paper,film,tape laminated film,etc.
WIND-1000GMax. Raw material width1000mm diameter 800mm
Finished products width25-1000 mmdiameter450 mm(max)
WIND-1300GMax. Raw material width 1300mmdiameter 800mm
Finished products width25-1300 mmdiameter450 mm(max)
WIND-1600GMax. Raw material width 1600mmdiameter 800mm
Finished products width25-1600 mmdiameter450 mm(max)
Inside diameter of paper core 3''
Machine speed 0-120 M/min
Power Supply:220V/380V/440V 3-Phase 50/60 HZ
1. AC motor with converter works as material transfer to achieve steady and rapid progression
by acceleration and deceleration.
2. Three motors contain main motor and two rewind magnetic powder form constant control.
The main motor is for feeding and rewind, magnetic powder are for tension control so that the
finished products have stable tension and smooth appearance.
3. Rewind unit:rewind shaft uses press roller to eliminate air to make finished products
tense and nice outlook.
4. Finished product rewind:
With bar type air shaft or differential shaft,suitable for more materials.
The shaft exchange is by special design and easy to change.
5. Electricity unit:LCD touch panel is used for setting tension,length,etc.
The control system adopts Siemens PLC to control movements with detecting function
so error can be found out easily.
Please click below link to view machine video
