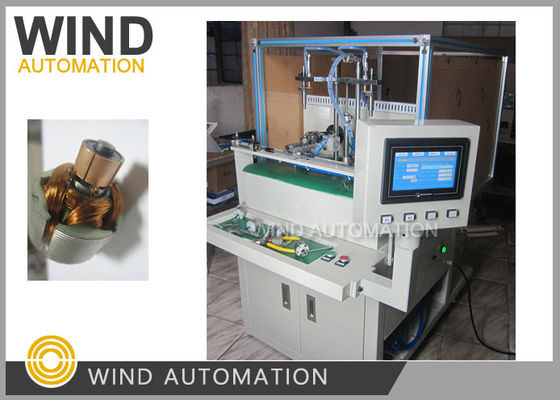

Double Station Armature Electric Motor Winding Machine / Small Rotor Winder

China Double Station Armature Electric Motor Winding Machine / Small Rotor Winder supplier

Large Image :  Double Station Armature Electric Motor Winding Machine / Small Rotor Winder

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ODD-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Commutator Type: Hook Type Commutator Armature Rotor Motor Type: Power Tool, Toy Motor With 3slots, 5 Slots
Winding Method: Flyer Winding Not Needle Winding Station: Two
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
NCM No / HS Code:: Coil Winding Machine 8479811000
High Light:

stator coil winding machine

,

electric motor winding machine

Double Station Armature Electrical Motor Winding Machine / Small Rotor Winder WIND-ODD-2







Quick Detail:



1. This armature winding Machine machine is suitable for small armature with 3-7 slots.

2. The coil winder has two working stations so that it can wind 2 armatures at same time.

3, Machine is controlled by PLC.




Description:



This kind of Two Station Armature Winding Machine is used for the small armature with 3~5 slots.



There are 2 working stations, 2 armature can be winded at same time. Machine is controlled by PLC.





Technical parameter:



Machine main technical parameter
Power source 220VAC ±10% / 50Hz
Main motor power ≤1.5kW
Max rotation speed of main spindle 3000rpm
No. of station 2 stations
Wire diameter range 0.07mm~0.27mm
Armature slots range 3 slots ,5 slots or 7slots
Armature O.D. range Φ30mm~Φ43mm
Stack length range 15mm~25mm
Armature spindle range Φ5.5mm
Air source 0.4Mpa~0.6Mpa
Working temperature 45℃
Store temperature 50℃
Working humidity <65%
Store humidity <45%







Information needed for Armature Winding Machine inquiry:

1. Rotor lamination drawing



2. Rotor assemble drawing



3. Rotor stack drawing



4. Rotor winding diagram drawing: with rotor wire diameter and turn number



5. Commutator drawing



6. Required productivity



7. Other technical requirement



If possible, it will be better if customer can send us samples.







Please click below picture to view four station armature flyer winder video

https://youtu.be/ppmeJmngnFk
