Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B

China Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B supplier
Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B supplier Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B supplier

Large Image :  Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-CT-TH3B

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: One Station Machine Color: White Or Accordingly To Customer Requirement
3 Axis: 2 Axis X Z Servo Motor Turning Commutator Roundness: < 0.003mm
HS Code: 84581100 Turning Surface: Aluminum Diecasting Rotor Surface,

2KW Plane Commutator Surface Precise Lathe Rotor OD Turning Machine WIND-CT-TH3B







SurfaceTurning Machining Machine Application:

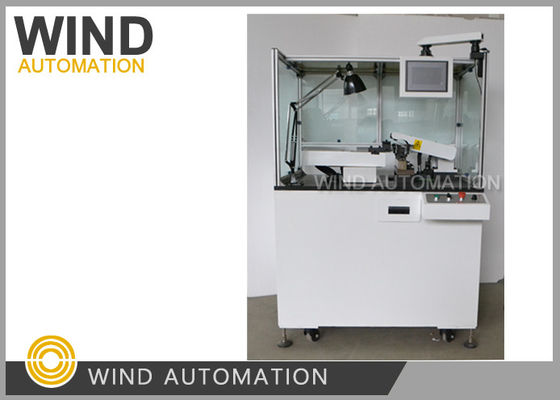

The lathe turning machine WIND-CT-TH3B is designed to turn the Plane Commutator surface



Rotor OD and Slip Ring





Commutator turning place

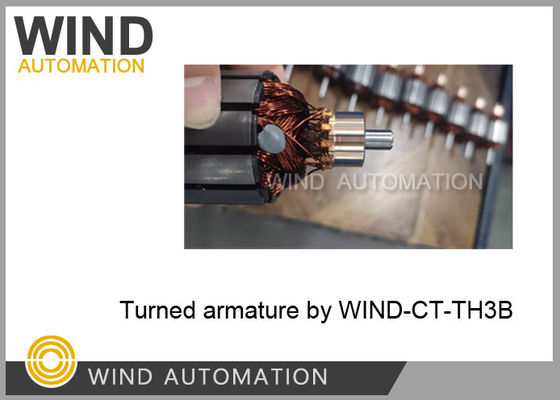

Lathe Rotor OD or After welding, can turn the commutator OD and



riser OD of automotive armature,Commutator Of General Sides Used



For Automobile





Cutter number



One cutter





Servo axis  device



With two (X,Z Axis) Delta servo axis







X axis control the length of turning left right horizontal  position



Z Axis control the depth of lathing in vertical position









Turning Machine Lathe Surface Competitive Advantages:



1.Precise with two axis Delta servo device control (Delta have quick and good after-service if any



   question)



2.Delta PLC



3.Delta inverter



4. Airtac cylinder



5.Diamond V holder and Diamond cutter



  a. Comparing with Alloy CNC turning tool (carbide),Diamond turning tool is what most Chinese



      motor manufacturers are using as diamond tool can achieve shining and micro finish



  b. The holding device of machine WIND-CT-TH3B for holding your Rotor OD have two side ball bearing



      device which prevent shaft from wear



6. A German customer who used 1st generation turning machine for over 14 years in German and Austria



    and still purchase diamond cutter from us







Lathe Machine Specification:



1. Roundness < 0.003mm



2. Surface roughness <Ra0.40



3. Armature OD 20~80mm



4. Shaft length:32~250mm (If longer need custom made)



5. Shaft Diameter: 2~18mm (can be custom made)



6. Commutator OD: 4.3~60mm



7. Stack OD: 20~90mm



8. Cutting amount:Rough cut Max0.20mm



9. RPM modulate: 0~60Hz



10. Cutter unit: 1um~0.5mm and speed adjustable



11. Cutting length:Max50mm



12. Cutting times: X axis can be setted up to 4times, Z axis 4times can be setted up to 4times



13. Air source: 5~7 MPa



14. Power source 220V 50/60Hz



15. Machine Power: 2KW




Lathe Rotor OD Commutator Turning Machine 2KW Plane Precise WIND-CT-TH3B
