Wire Bending Machine Aircraft Areo Flat Wire Hairpin Forming Shape Generator Conductor

China Wire Bending Machine Aircraft Areo Flat Wire Hairpin Forming Shape Generator Conductor supplier

Large Image :  Wire Bending Machine Aircraft Areo Flat Wire Hairpin Forming Shape Generator Conductor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-AWF-F

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Contact Now
Detailed Product Description
Flat Wire Application: Wire Bending Machine Aircraft Areo Working Station: Wire Forming Combined Machine
Handled Wire Size: Starter Flat Wire Conductor Below 3mm*8mm Hairpin Forming Process: Feeding,Straighten Alignment, Cutting And Punchforming, Unloading
After Sales: Engineers Available To Service Machinery Overseas HS Code: 84798110
Flat Wire New Energy Drive Motor: 1KW To 150KW

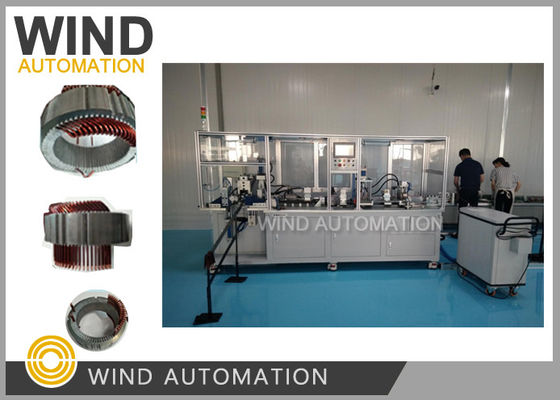

Aircraft Areo Flat Wire Hairpin Forming Shape The Generator Conductor WIND-AWF-F







(1) Application:



Aircraft, New Energy Car Drive Motor,Truck Flat wire







(2) Advantages:





New energy motor Hairpin cycle time



About 4 to 5seconds per root (Wire length 300mm)





Feeding length



Controlled by servo motor, adjustable





Hairpin forming process



Flat wire straighten, plane enamelled remove, side enamel



remove, automatic vacuum cleaner, servo feeding, detection,



cut and forming









(3) Parameter:



Power Supply Voltage: 3Φ-380V±10% 50H



Air source Pressure: 0.5~0.7Mpa



Varnish Removing Length: 0~50mm



Wire Feeding Length: 150~400mm



Wire size handled: 3*8mm







(4) Configuration:



1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.



2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.



3. Taiwan Nicholas precision planetary reducer.



4. Taiwan AIRTAC pneumatic parts and solenoid valves.



5. Schneider Electric components, Mingwei switch power supply.



6. Welding rack, surface spray, color: gray. Taiwan plate grinding, plating.



7. The whole part of the aluminum frame frame, three-color signal indicator.



8. The mold part of the mold steel vacuum quenching treatment.



9. To paint part of the use of hydraulic punching method, punching part of the position adjustment device



    adjustment screw, automatic vacuum.



10. Cut off part of the use of cylinder punching.



11. Bending U-shaped part of the use of cylinder punching.



12. 150L hydraulic system set.



13. 3KW automatic vacuum cleaner set.



14. A set of automatic discharge machine.
