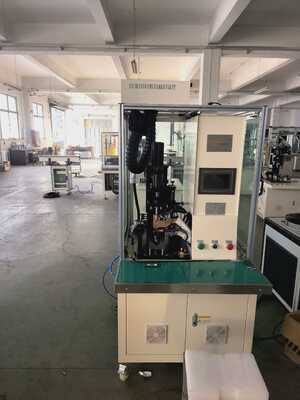

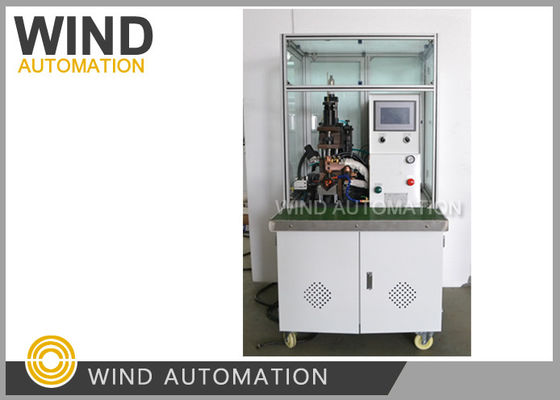

Hook Riser Slotted Type Commutator Fusing Machine Spot Welding Hot Staking Wire Fusing

China Hook Riser Slotted Type Commutator Fusing Machine Spot Welding Hot Staking Wire Fusing supplier

Large Image :  Hook Riser Slotted Type Commutator Fusing Machine Spot Welding Hot Staking Wire Fusing

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-DC-CW003

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Two pallets one for welding machine , one for water cooling device 662KGS 1040mm*1040mm*1960mm, 740mm*740mm*1270mm
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Application: 12V,24V DC Brushed Motors DC Power Supply: Self Developed DC Power Supply
Fusing Wire Size: From 0.01mm To 1.20mm For Types Of Armatures Welding Cooling Device: With A Separate Water Cooling Device
Adjustment Easy: The Welding Operation And Setting Is Easy For Operator Welding Big Wire Diameter Range: From 0.01mm To 1.20mm For Types Of Armatures
Gross Weight: 662KGS Including Package Pallet Commutator Shape: Tang Commutator, Hook Commutator, Riser Type

Hook Riser Slotted Type Commutator Spot Welding Hot Staking Wire Fusing Machine WIND-DC-CW003







(1) Application:



PMDC motor armature with hook commutator, riser commutator







(2) Advantages:





Fusing Quality Assured



Self-developed High frequency 15KHz power supply ensure constant



fusing quality

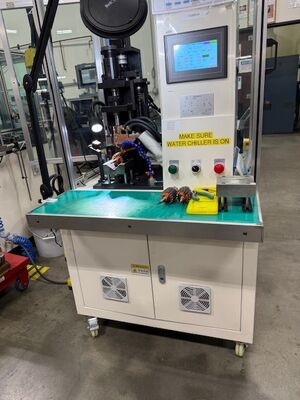

Water Cooling device



Separate cooling water device (act as a conditioner) ensure



temperature constant





Wide Application



Copper wire wide adaption from 0.01mm~1.20mm(AWG44~AWG17)









(3) Ask and Answer:





We are producing 12/24 V DC brushed motors, and we need a Fusing Machine.



Could you inform me about the technical information and price of the machines?





The diameters of shafts we use are Ø8, Ø10, Ø12, Ø14, Ø15, Ø17 and Ø20 mm.



Diameters of armatures that we have are Ø32, Ø40, Ø42, Ø55, Ø65, Ø68 and Ø81.



As you have types of armatures,you may consider the fusing machine WIND-DC-CW003 with high



frequency 15K Hz DC power supply for high and consistent quality with refrigeration constant temperature



separate water cooling tank.







(4) Fusing machine Parameter:



Wire diameter: 0.01~1.2mm



Armature OD: 20~100mm



Armature stack height:10~100mm



Commutator OD:8~70mm



Airsource:5~7KG/cm2



Welding power: 10~30KW



3phase AC 380V 50~60Hz



Weight: about 350KGS



Fusing power supply: Wind Automation self developed high frequency 15KHz, 500~5000A



Control system: Japan Mitsubishi PLC



Indexing control: Japan Mitubishi servo positioning system 7'' Touch screen







(5) What data is required when you send inquiry:



1. Armature size including armature OD, Shaft diameter and length



2. Wire diameter range

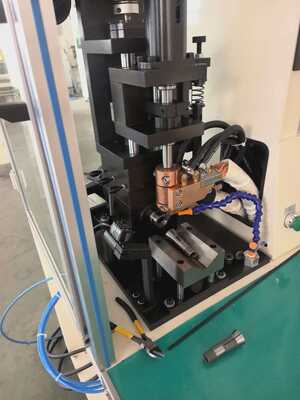

Please click below commutator welding machine fixture picture to view video
