Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding For Car Stator

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

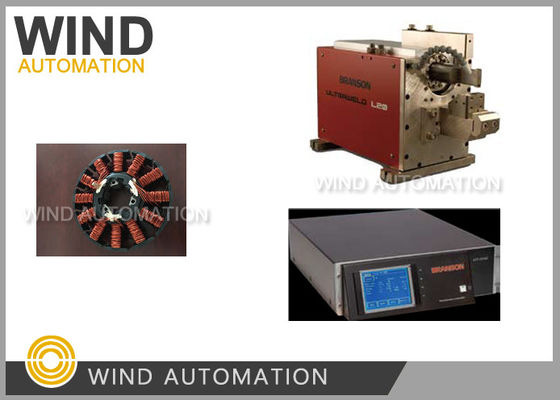

Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding For Car Stator

China Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding For Car Stator supplier

Large Image :  Wire Soldering Commutator Fusing Machine Ultrasonic Wave Metal Welding For Car Stator

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: Ultraweld L20 According to the workpiece size and material

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet
Delivery Time: 10 working days
Contact Now
Detailed Product Description
Condition: New Workpiece: Stator Terminal Wire, Other Metal Material
Radial Magnetization: Magnetizing The Magnetic Strip Of The Magnet In The Motor Ultrasonic Wave: Ultraweld L20 Type With Different Feeding Device
After Sales: Engineers Available To Service Machinery Overseas HS Code: 8468100000
High Light:

laser welding machine

,

arc welding machine

Ultrasonic Wave Metal Welding For Car Stator Wire Soldering Fusing Machine







(1) Application



Metal material







(2) Advantages



1. Welding resistance is 1/3 of the common welding or revet press method



2. No heat hurt the workpiece surface







(3) Parameter





Bracket



L1A00A55(63mm)



L1A00A56(100mm)





Length



652.2mm (25.5 in)





Height



329mm(13.0 in) Max Up



281mm(11.0 in) Max Down





Width



Bracket main body203mm(8.0 in)



Base 262mm(10.3in)





Weight



27.1KGS(60lbs)





Stroke



48mm(1.9in)





Tooling strech length



145mm(5.7in)











(4) Feature





Equipment technical parameters:



rated power: 4KW



resonance frequency: 20KHz + 300Hz



amplitude adjustable range: 1um~ maximum amplitude



adjustable range of pressure: 5 ~ 70psi



welding time: 0.5+0.1s



welding cycle: 1.8+0.3s



outline size (unit: mm): 374 (L) X262 (W) X329 (H)



device weight: 23Kg



cylinder stroke: 48mm





parameters of ultrasonic generator:



operation interface: touch screen



power: 4KW



outline size (unit: mm):564 (L) X444 (W) X142 (H)



weight: 16Kg



rated current: 22A



rated voltage: 220V (customers provide 220V + 10%~7% power supply,



                       and no voltage regulator is needed in this voltage range).





other parameters:



tracheal interface diameter: dry and clean compressed air 0.6MPa. The diameter of the interface is 8mm



power plug specification: large three-circle standard plug



communication interface form: RS232/RS485





PLC butt diagram:



specification: double horn and horn size



The length of the connection line of the 4.3.6 control box and the frame is 5M
