Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing

China Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing supplier

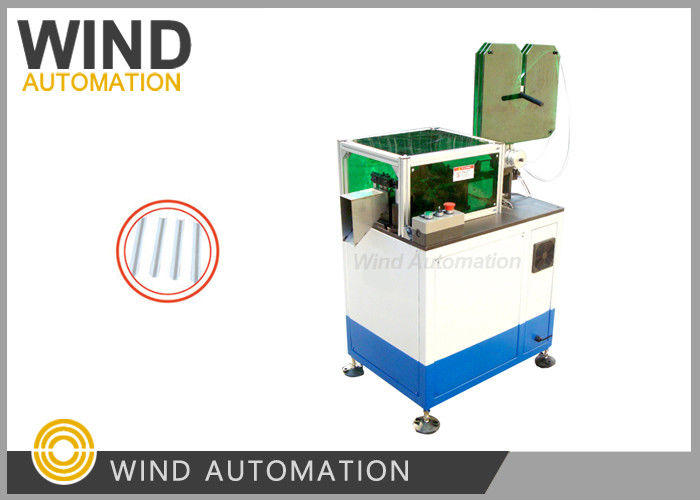

Large Image :  Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-200-WF

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment L910 mm x W880 mm x H1300mm3
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Insertion Speed: 0.5 To 0.7 Second Per Slot
Material: DMD, DM, Polyester Film(thickness 0.125mm) Edge Folding Length: Usually The Edge Folding Length Is 2.5mm To 3mm
Machine Color: White Or Per Customer Requirement After Sales: Engineer Available For Oversea Support

Varies Wedge Forming Cuffing Creasing Cutting Machine For Slot Wedge Manufacturing​ WIND-200-WF



This machine form and cut the wedge for stators. It can cut, form, heat wedge. Wedge feeding length, and cutting speed can be programmable in HMI. It adopts a double row mould for wedge cutting. Wedge feeding is controlled by servo motor.

(1) Specification

Cycle time 120pcs/min
Cutting thickness 0.2~0.5mm
Feeding length 10~200mm
Total power 0.5KW
Power supply 220V 50/60HZ
Weight 150KG
Dimension 450x650x1100mm


(2) Feature
Simple and easy to operate
No skilled operator needed

Wide application

No regular maintenance needed

(3) Application
Suitable for small and medium three phase motor, gasoline generator motor etc





Question and Answer:



Question:



our topsticks (or wedge sample) can be 0.020”. Please advise if your automatic wedge forming machine



can form this wedge or not.



Answer:



in theory the automatic wedge forming machine can only form DMD paper below thickness 0.35mm,



The wedge should be heated on machine before formed,



Your wedge is NMN with 0.51mm and too hard to be formed,





Please click below photo to view video
