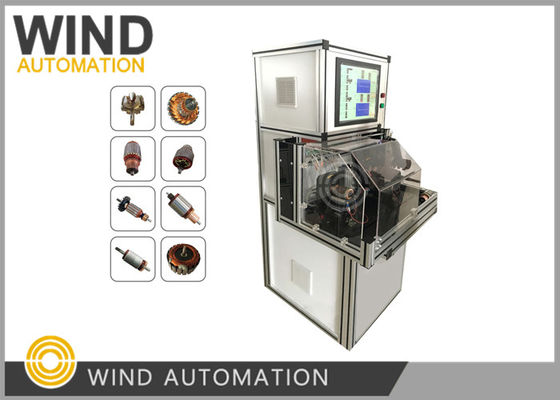

OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter

China OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter supplier
OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter supplier OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter supplier

Large Image :  OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-ATS-02

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet 890mm(Operation table )*910mm(Depth)*1630mm(Height)
Delivery Time: 35 working days
Payment Terms: T/T
Detailed Product Description
Condition: New Certificate: Main Parts CE
Working Station: Double Station Automation Type: Fully Automatic
Testing Item Content Display: Test Result Intuitive Display On Screen One By One Armature Slots: 13, 17, 19 (few), 21,23,25,27, 28,29,33slots (common)

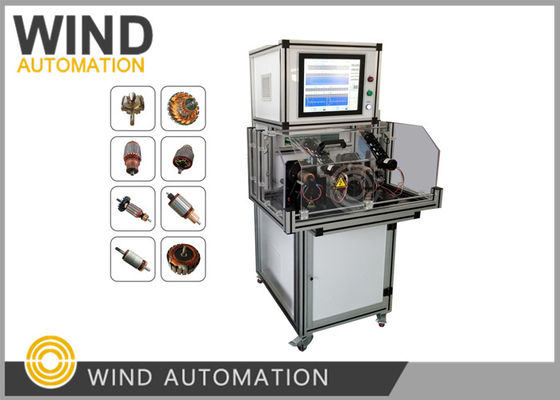

Armature Tester WIND-ATS-02 Working In 80% Of China Local Starter Armature Manufacturers' Plant WIND-ATS-02



This starter armature tester WIND-ATS-02 had worked for many local big famous starter manufacturers including Huachuan,Shendian,

One of them purchased 5pcs at the first time and then 7pcs, we can say 80% of the local starter manufacturers are using our testing device,

Our engineering team bulid this tester according to customers requirement and had much experience,

upgrade the tester gradually in past years, combine and considering starter manufacturers' feedback and new requirements,

In short word, the test items are based on starter armature manufaturers' requirements, you can depend on it for judging your armature quality,



The Armature tester WIND-ATS-02 can test armature below 36slots, so it is OK with slots from 12 up to 33 slots.

Yes, all the result is showed on screen slot by slot,

we took a video focus on the screen with a 23slots armature, please refer to attached video,



You can see on the screen 6 test items being tested one by one with 23 data come out gradually,



1. Bar to bar resistance (Inter-chip resistance of two commutator bars)

2. Welding resistance (To check the welding quality, the smaller the better)

3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)

4. Surge (Between the turns of the coils, comparing waveforms)

5. Isolation resistance (Resistance of the coils and stack core)

6. Hi-pot (High voltage between the coils and armature stack core)






Application:

Starter armature upto 36 slots

covering 13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)



Advantages:

1. Automatic positioning, the operator no need to check initial positioning manually,

    Make the testing convenient and easier.

2. 100% Satisfied feedback from starter armature manufacturers.



Technical Data:

1. Bar to Bar resistance,0.01mΩ~10mΩ (Out of range display OVER)

    Four-terminal measurement to ensure accuracy

2. Welding resistance,0.001mΩ-10mΩ (Out of range display OVER)

   Six-terminal measurement to ensure accuracy

3. Cross resistance 0.01mΩ-10mΩ

    Four-terminal measurement to ensure accuracy

4. Surge 100-1000V (100V/time)

    Pulse crest:0.5u sec, Frequency 1~40MHz

    Standard waveform is Write, OK waveform is Green, NG waveform is Red

5. Isolation resistance DC 500V

   Testing time:1~10s (0.1s/time)

    Range:1~500MΩ

    Accuracy: ≤±5%

6. Hipot AC 100-1000V

   Testing time:1~10s (0.1s/time)

   Armature commutator bars ≤ 36 bars

  Testing panel cycle time: 8~9s (according to 33 bars)

  13, 17, 19 (few), 21,23,25,27, 28,29,33 slots (common)



Main Configuration:

15’’ Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder

Pneumatic parts:Airtec

Power: AC 220V,50Hz

Air pressure:0.4~0.6MPa

Temperature:0~45℃

Dimension: 950mm*1250mm*580mm

HS Code:9030390000



Question and Answer:

Now we produce armatures with 29 slots, but we know some armatures with 33 slots and even 38 slots. Does the machine has capacity to test armatures with this quantity of slots?


Standard machine WIND-ATS-02 can test with most 36slots only



All the slots testing data will be displayed separatedly with identification on the screen?


Yes



Is it possible to have three languages on the machine? Portuguese, English and Mandarin


English and Mandarin


Please describe the tests that the machine is able to do



1. Bar to bar resistance (Inter-chip resistance of two commutator bars)
2. Welding resistance (To check the welding quality, the smaller the better)
3. 180° Cross resistance (Bar to bar resistance of commutator which is 180° angle with opposite side)
4. Surge (Between the turns of the coils, comparing waveforms)
5. Isolation resistance (Resistance of the coils and stack core)
6. Hi-pot (High voltage between the coils and armature stack core)



How many different recipes we can setup and save on the machine?


510 sets recipes



Please describe the calibration procedure, short description


Use standard resistance to calibrate



Is there any kind of restriction due to the size of the armature?



Use different fixture to adapt to



What is the average time for one test of one armature?



About 15s' (including initial auto positioning)


Please decribe to us the main parts brand on the machine



Sampling Chip: BB(USA import)
Relay:NAIS(Jpan Panasonic)
High voltage relay:Meder (Germany import)
Pneumatic parts:Airtac


What is the warranty time and terms?



15 months from date of B/L,please refer to attached after sales details



Explain to us the welding resistance test



Six wiresl balancing measurement method to ensure accuracy



Please tell us the size na weight of this machine



Net weight 150KG Dimension Dimension: 950mm*1250mm*580mm



What is the Installed power of the armature tester?



1500W



Is the machine 50Hz or 60Hz?



50Hz or 60Hz, It's OK , no effect of testing



What is the voltage?





If I put an armature with short circuit, after the machine refuses it, do I have to resetup the machine?



You don't have to reset up, you can test the next armature directly



Does the machine has conection to the net? With this we can save the testing data in our server, make remote access....



Yes,machine can have this function



Is it possible to add working instruction in the machine? Like a PDF file or similar



Yes



Is it possible to print the test results?



Yes, you need a printer by yourself



Do we have the possibility to chose which test we want to make?



Yes, you can choose which test item to make



Does the armatue anaylser has a communication port that is able to connect to a fiber laser printing machine and send serial number to be printed on the part?



Yes, machine can have this function



Starter Testing Machine Quality Checking Report Before delivery
OEM Armature Testing Equipment WIND-ATS-02 Working In 80% Of China Local Starter


Armature Testing Machine trouble shooting



1. Testing machine in motor manufacturer's plant



    User question:



    We found that our armature testing machine doesn’t accuses an armature with short circuit,

    please check the attached videos.The machine approves a short circuited armature…

    Help us to solve this problem.



    Wind Automation feedback:



    The videos were checked by engineering team,

    From the video we can't see the location of the short circuit,

    Is it the short circuit between armature lamination stack and commutator?

    or where short circuit,



    If short circuit between armature lamination stack and commutator(or hairpin),

    In normal condition, the Hi-voltage test can detect and accuses the short circuit,

    Looking forward to your further news to evaluate!



    Testing machine user feedback:



    It is short circuit between lamination stack and commutator.

    Even with a simple multimeter it can accuse it but the machine Hi-Voltage test is not working well.



    Wind Automation give solution:



    Did you verify the machine Hi-voltage function with short circuit armature?

   If the Hi-voltage don't work, the connection might be loose,

   Would you please measure if the red wire from the bearing place to board is well connected?

   The red wire is realted to Hi-voltage function, please check.
