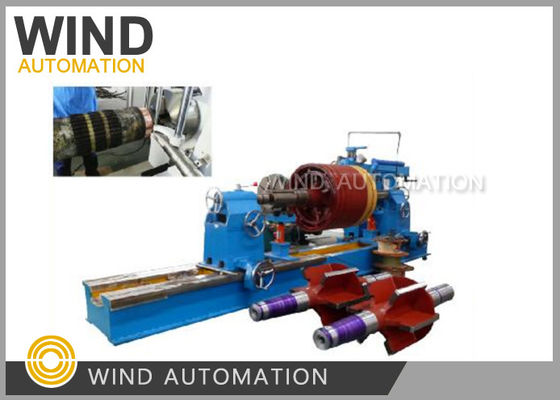

Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing

China Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing supplier

Large Image :  Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-ZCN072-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1 Pallet Weight: about 900Kg Machine dimension: 1,200mm x 750 mm x 1,800mm3
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Positioning: Indexing
Working Station: One Station Machine Color: White Or Accordingly To Customer Requirement
Cutting Slots: 2 To 99 Slots Slotting Speed: 1 Seconds/ Slot
HS Code: 84581100 Certificate: CE

Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing WIND-ZCN072-1





Specification of undercutting machine WIND-ZCN072-1

Commutator Undercutting Machine WIND-ZCN072-1:



Machine Construction

This equipment has a machine bed, a fixed tailstock thimble, an adjustable thimble with clamping, a hydraulic ram, a power lower engraving head on the ram, a hydraulic power system, and an electrical control System, a set of dust collector.

Manually rotate the engine to position and press the button to carry out the undercutting.



Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing



Commutator Undercutting Machine For Cut DC Motor Armature Mica Manual Indexing



Undercutter Specification

1. Iron core dia. of workpiece(Outside diameter): Max. Φ700mm (thimble center height 400mm).

2. Commutator diameter of workpiece: φ125mm, max. Φ400mm.

4. Turning axletree length of workpiece: 1000mm.

5. Max. commutator length: 300mm.

6. Milling cutter dia.: φ23mm. The milling cutter is 1000mm above the ground.

7. Milling cutter speed: 2800r/min, power: 0.5KW.

8. Max. rotor weight of workpiece: 1Ton.
