Powder Coated Insulated Stator Coil Winding Machine Needle Winder For Brushless Motor

China Powder Coated Insulated Stator Coil Winding Machine Needle Winder For Brushless Motor supplier

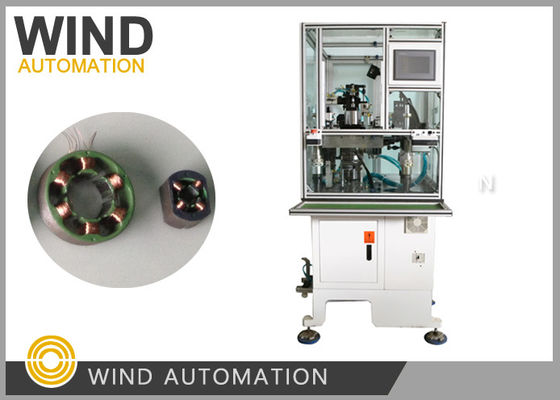

Large Image :  Powder Coated Insulated Stator Coil Winding Machine Needle Winder For Brushless Motor

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-3A-TSM

Payment & Shipping Terms:

Price: Negotiable
Payment Terms: T/T
Contact Now
Detailed Product Description
Winding Diagram: According To Winding Diagram Winding Type: Needle Winding Rather Than Flyer Winder
Working Station: Single Station 3 Needles As Three Station Winder Winding Speed: 300RPM To 500RPM According Wire Gauge
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
Wire Size: AWG 17, 1.2mm After Sales: Engineers Available To Service Machinery Overseas

Powder Coated Insulated Stator Coil Winding Machine Needle Winder WIND-3A-TSM







Application:



Needle winding BLDC stators of Three Phase Motor like Sewing Machine,Air conditioning compressor,



Refrigerator compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12



poles or 18 poles







 Advantages:



 ​​✔ 3 needles wind 3slots at same time, wider can finish the winding in3 times for 9poles BLDC stator



 ​​✔ Can wind 6, 9, 12 poles stators which is Multiples of 3slots



 ​​✔ Winding speed can be setted per different wire diameter from 0.08mm to 1.2mm,



     and heavy or light weight stators, big or small stack height, have good apation with no limination







Feature:



Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator



Its winding track is in square shape,It does wires winding and arraying at same time and automatically.



The slots needle winding, arraying,indexing,place bridge wire,cut wires are fully automatically.







Parameter:



Wire diameter: 0.08~1.2mm (AWG17~AWG39)



Stator ID:15~65mm



Core length:7-110mm



Turns No.0-99999



Operation option: stepping/Auto



Stator poles: 6 poles, 9 poles, 12 poles,18 poles (Customized)



Air pressure:5~7kg/square centi-meter



Power:2KW, AC220V 50/60Hz



Weight: about 450kgs



Dimension: 1600(L)x1100(W)x1400(H)mm









1. Which type of stator needle winding shall we select for our stator in attached drawing?



    The winding machine WIND-3A-TSM with winding arrraying indexing servo device


    and angle swing cam device is very suitable for winding your stator metioned in drawing,

    it is very stable in winding big and small wire , heave or light BLDC motor compressor stators.


2. Can you also estimate the winding period of our design,  how many stators can we produce

    in one hour?



    Per your winding data Number of turns 27, wire diameter 0.8mm,



    the winding speed we suggest is 300RPM, and it take about 1mintutes to get 1pc wound stator,



    In one hour you can get more than 60pcs.





3. What's the material list we shall provide for machine trail?



    Below samples are needed for machine manufacturing and commissioning:



    1. Stator stack 5pcs without winding



    2. Wound stator 1pc



    3. Copper wire 1 roll enough for winding 15pcs stators



4. How to solve the problem if we have question when we begin to use the machine?



    You can send email to us, Wind Automation can reply you email within 24hours,

    Below is a example of trouble shooting,



In order to let the machine turn to home postion, please follow below steps,

1. Press'Manual', rise up the main spindle with action no

2. Assemble nozzles, because the relative positon need the nozzles

3. Adjust the three swithes per PDF process

4. After all swithes is well adjusted, press Emergency to go to home position and machine will begin to work well



Please click below picture to view video
