Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming

China Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming supplier
Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming supplier Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming supplier Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming supplier Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming supplier

Large Image :  Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-HF-BX

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Pallet Size 2000mm*800mm*1800mm
Delivery Time: 60 Working days
Contact Now
Detailed Product Description
Flat Wire Application: Wire Bending Machine For Hair Pin Working Station: Wire Forming Combined Machine
Handled Wire Size: Starter Flat Wire Conductor Below 3mm*8mm Hairpin Forming Process: Feeding,Straighten Alignment, Cutting And Punchforming, Unloading
Cycle Time: Accoring To Length 5s To 8s Per Piece HS Code: 84798110
Flat Wire New Energy Drive Motor: 1KW To 150KW After Sales: Engineers Available To Service Machinery Overseas

Hybrid Car BSG Stator Electric Vehicle Automotive Motors Conductor Forming WIND-HF-BX



(1) Application:

This hair pin forming machine is widely used in starter bar, aerospace coil, moving vehicle including hybrid car motor, heavy duty motor, BSG stator, electric car,light vehicle, electric vehicle, automotive motors, pure electric car motors, hybrid car motors, electric forklifts motors, electric tricycles motors, tourist vehicles motors, power tools motors and other automobile industry motors.





(2) Advantages:

 a. Hairpin forming machine is a combination of several process,

    it automatic straighten the raw coil,remove enamel of four sides by grinding( flat surface, side surface at same time Chamfer),

    automatic industrial vacuum cleaner suction, servo motor feeding, detection,cutting, forming,



 b. High efficiency: 4~5s/pc (Hair pin Length 300mm) 6~8s/pc



 c. Encoder check if servo motor send the same length every time



 d. Enamel remove with grind method or cutting method can clear the surface






(3) Parameter:



Power Supply Voltage: 3Φ-380V±10% 50H



Air source Pressure: 0.5~0.7Mpa



Varnish Removing Length: 0~50mm



Wire Feeding Length: 150~400mm



Cycle time: 6s' to 8s' for 300mm length



Wire size handled: 3*8mm







(4) Configuration:



1. Mitsubishi PLC, WEINVEIW 10-inch touch screen.



2.Taiwan HIWIN linear guide and module, Delta servo motor line. Line length adjustment.



3. Taiwan Nicholas precision planetary reducer.



4. Taiwan AIRTAC pneumatic parts and solenoid valves.



5. Schneider Electric components, Mingwei switch power supply.



6. Welding rack, surface spray, color: gray. Taiwan plate grinding, plating.



7. The whole part of the aluminum frame frame, three-color signal indicator.



8. The mold part of the mold steel vacuum quenching treatment.



9. To paint part of the use of hydraulic punching method, punching part of the position adjustment device



    adjustment screw, automatic vacuum.



10. Cut off part of the use of cylinder punching.



11. Bending U-shaped part of the use of cylinder punching.



12. 150L hydraulic system set.



13. 3KW automatic vacuum cleaner set.



14. A set of automatic discharge machine.



Please click below picture to view video

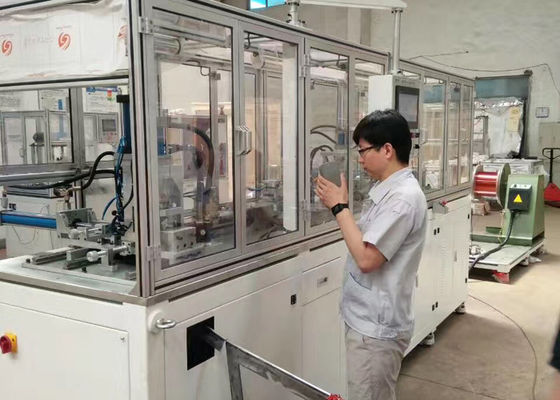

Hybrid Car Hairpin Winding Machine Automotive Motors Conductor Forming
