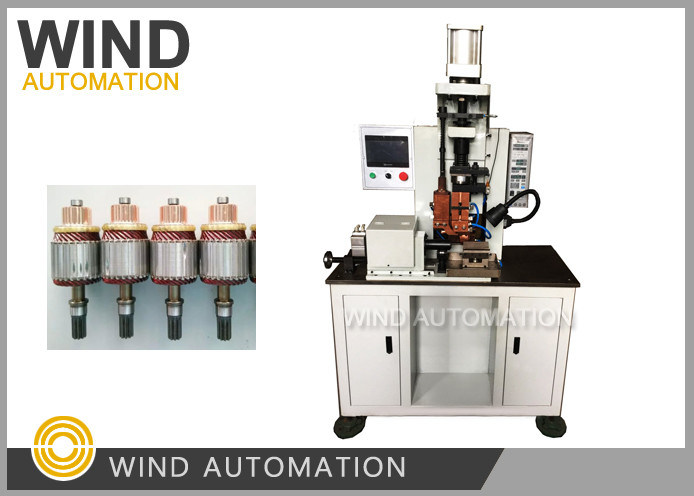

Resistance Welder Hot Staking Machine 40kva Commutator Fusing Machine With Miyachi Controller

: Large Image : Resistance Welder Hot Staking Machine 40kva Commutator Fusing Machine With Miyachi Controller

Product Details:

Place of Origin:	China
Brand Name:	WIND AUTOMATION
Model Number:	WIND-DNZ series

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Two pallets one for welding machine , one for water cooling device 662KGS 1040mm1040mm1960mm, 740mm740mm1270mm
Delivery Time:	30 working days
Payment Terms:	T/T

Contact Now

Detailed Product Description

Fuse Application:	12V,24V DC Starter Motors Armatures	Power Supply:	AC Power Supply
Fusing Wire Size:	Below 3.2mm 40KVA, Below 2.8*7.8mm 80KVA	Welding Cooling Device:	With A Fan Cooling Device
Adjustment Easy:	The Welding Operation And Setting Is Easy For Operator	Welding Big Wire Diameter Range:	2.8*7.8mm
Gross Weight:	662KGS Including Package Pallet	Fusing Quality:	Fuse Current, Fuse Time, Pressure, Contacting Resistance
High Light:	arc welding machine , ultrasonic welding machine

Resistance Welder Commutator Fuse 40KVA/60KVA/80KVA Welding Machine With Miyachi CT110 Controller WIND-DNZ

(1) Application:

Starter motor armature with round wire, flat wire

(2) Advantages:

Fusing Quality Assured

Motor manufacturer use it for 8 years only replace parts two times,

one time is valve replace, the other time is relay replacement

Wide Application

Copper wire wide adaption below 3.2mm to 2.8*7.8mm

Easy to Operate

Easy for the operator to set with Miyachi controller CT110 which is widely used in fusing machine

(3) Fusing machine Parameter:

Fusing Power supply and parameter	WIND-DNZ-40	WIND-DNZ-60	WIND-DNZ-80
Fusing Rated power (KVA)	40	60	80
Power supply (3phase)	380V, 50Hz	380V,50Hz	380V,50Hz
Max. starting current	6A	7A	8A
Max.short circuit current	9KV	11KV	13KV
Rated load duration	20%	20%	20%
Secondary voltage	4.8V	5V	5.2V
Welding cylinder dimension	f 100*50	f125*50	f125*50
Electrode size	f10*100	f10*100	f10*100
Fusing machine dimension	12007201720	12007201720	12007201720mm

(4) Feature:

Commutator spot welding WIND-DNZ machine fuse 23 slots armature within 50 seconds,

Armature Rotor Commutator spot welding fusing machine 15KW,25KW,32KW,75KW series per armature copper wire diameter size, suitable for weldling hook type or with conventional slot groove commutator starting motor armatures,

40KVA(3.2mm AWG8 round wire, Max 4.0mm AWG6)

80KVA (2.8*7.8mm AWG9*AWG1 flat wire)
