PSC Stator Coil Winding Machine 1-Station or 2-Station Smart Foot Print

China PSC Stator Coil Winding  Machine 1-Station or 2-Station Smart Foot Print supplier

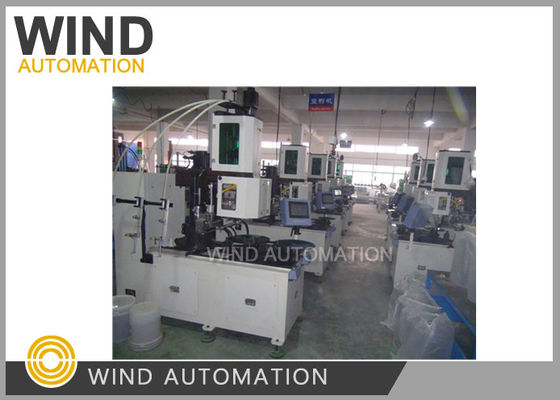

Large Image :  PSC Stator Coil Winding Machine 1-Station or 2-Station Smart Foot Print

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-100-VW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet 2000mm(L)*1200mm(W)*2200mm(H), It is 79''*47''*87''
Delivery Time: 60 Working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Motor Stator Coil Winding: With Servo System Not CNC Type Compare To Common Coil Winder: Save Copper Wire
Wire Gauge: Min. 0.1mm (AWG38) Automation Type: Fully Automatic Vertical Winding With Rotary Device
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

stator coil winding machine

,

automatic coil winding machine

1-Station or 2-Station  PSC Stator Coil Winding Machine Smart Foot Print WIND-100-VW







Application:



WIND-100-VW vertical winding machine wind the coil and put coil to transfer form (the transfer form with



wire can be embered in stator in next operation process wedge and coil insertion machine)



It is feature is high efficiency,save copper wire and suitable for small slot opening stator with high filling



rate, also the wire don't break during insertion operation (the local user's feedback)







Advantages:



Machine size and Motor poles stator stack height



1. Engineer confirm when the maximum machine depth (front to back) is 70”

2. The 4,6,8 poles stator maximum stack height can be 4.3'' (110mm)


Two working station winding machine


1. The depth is about 79'' due to there were two working station for winding alternation,



2. Depth is related to the size of the coil your 48 frame PSC stator





✓ Material Saving



Save cooper wire because  don't need to connect separate coils





✓Stator narrow slot



Constant winding quality suitable for high filling rate stator winding insertion



with slot width above 1.36mm





✓Labor cost Saving



Stator winding machine wind coil directly to windings transfer former, operator



no need to put the coils in place, instead they just need to put on transfer



former on the winding insertion machine





✓ Better winding quality





Comparing to common cnc winding making machine, WIND-100-VM not only



save copper wire, but also ensure the winding quality during insertion to



stator,there winding wires don't break during insertion operation process









Parameter:



Wire diameter:0.2~1.2mm


Min stator ID:40mm


Max stator OD:175mm


Core length:40-130mm


Power:380V, 50/60KW


Weight: about 1100kgs


Dimensions: 1900 (L)x850 (W)x3200(H)mm







Below table is needed when you send inquiry



Stator details
Lamination drawing stator ID.
(mm)
stator OD.
(mm)
Slot No. Stack height
(mm)
Wire type
(copper/Al)
Wire diameter
(mm)
Parallel
wire number
Number of turns
per coil
Coil pitch
