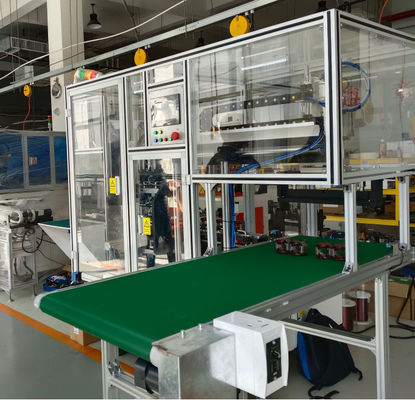

Fully Automatical Stator Winding Equipment Two Pole 2 Pole Universal Stator Winder
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Coil Winding: | High Slot Filling Rate Two Pole Stators | Auto Type: | Fully Automatic |
|---|---|---|---|
| Operator Job: | Just Load Stack And Unload Wound Stator | Station: | Two Working Station |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| High Light: | coil making machine,stator coil winding machine |
||
Two Pole Electric Motor Stator Field Coil Automatic Winding Machine WIND-SW-2
Application:
Two Poles Inslot Stator covering mixer, grinder, power tool ,vacuum cleaner filed coil winding.
Competitive Advantages:
1. Fully automatical stator winding machine,Automatically load the tooling, clamp the wire
2. Automatically winding for high slot filling rate two pole stators
3. Easy Operation, the operator only need to load stator on fixture and unload wound stator
3. Very popular for high volum output motor manufacturers
Parameter:
Stack height 10-70mm
Stator ID 20-60mm
Stator OD 50-130mm
Stator poles No. 2
Wire diameter 0.15-1.3mm
Lubrication mode: continuous lubrication oiling machine
AC380V, 50/60Hz, 4.5KW, air pressure 57kg/cm2
About 1200kgs, 1500 x 2100 x 1650mm
NCM No / HS Code:8479811000
Please click below picture to view stator wider video
