Rotor Broken Bar Electric Motor Testing Equipment Compressor Pump Motor Aluminum Die Casting

China Rotor Broken Bar Electric Motor Testing Equipment Compressor Pump Motor Aluminum Die Casting supplier

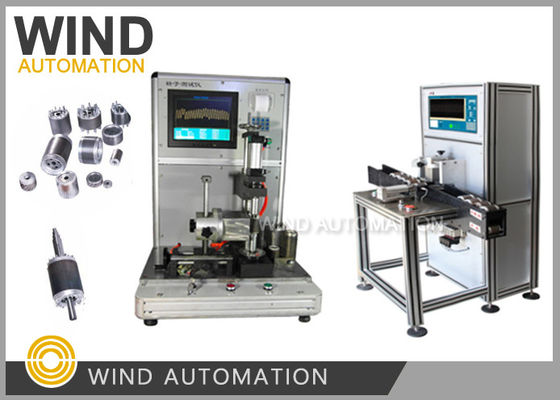

Large Image :  Rotor Broken Bar Electric Motor Testing Equipment Compressor Pump Motor Aluminum Die Casting

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: 35 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New Test Item: Judging Defects Of Broken Bar And Thin Bar
Working Station: Single Station Automation Type: Fully Automatic Or Stand Alone Machine Available
Testing Item Content Display: Test Result Can Be Printed Rotor Type: Open Slot Rotor, Close Slot Rotor
High Light:

high voltage test equipment

,

armature testing machine

Compressor Pump Motor Aluminum Die Casting Rotor Broken Bar Testing Machine WIND-RT-1







(1) Quick Details



WIND-RT-1 Rotor testing machine use high-precision sensor to detect rotor signals,



Judge defects of rotor broken bar and thin bar automatically and then alarm,



the data can be stored and printed.







(2) Advantages



1. Dedicated testing machine for judge rotor quality



2. The machine operation is simple and easy



3. Can test aluminum diecasting rotor with or without shaft







(3) Technical Data



Rotor Diameter

30—130mm
Rotor Length 30—155mm
Air pressure 0.3MPa
The Number of Conduction-bar 10—100
Test Speed 100—1500rpm
Net Weight Around 170KGS







(4) Test Item



1. Broken bars, tool slim bars



2. Porosity, sand holes,residues on bars,undercasting



3. Declination error,internal short circuit in bars



4. Alignment of core with bar



5. Improper end ring (Extra cost needed)







(5) Ask and Answer



Ask:


Why the waveform next to the AC induction motor diecast rotor broken bar of will become larger by tester?


Answer:


When cut magnetic lines, the broken bar of aluminum die casting Rotor doesn’t produce induced current,


So for the next bar of cast-aluminum rotor, the current is abrupt.



When Browhole (Porosity) occur, the bar is thin or too slim,


Porosity and sand holes standard should be defined by user as they are common.


Rotor Broken Bar Electric Motor Testing Equipment Compressor Pump Motor Aluminum Die Casting

(6) Types of Rotor fixture realted factors

Rotor ID, Rotor OD, Length, End ring height



Please click below photo to view machine video

Rotor Broken Bar Electric Motor Testing Equipment Compressor Pump Motor Aluminum Die Casting
