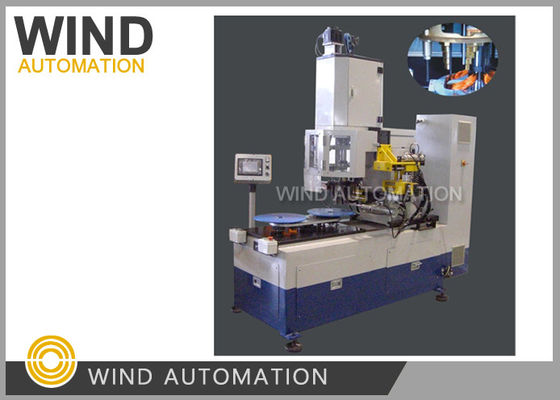

Fully Automatic Coil Winding Machine Vertical 0.1mm Thin Wire Winding / Placement Machine

Certification
Good quality Needle Winding Machine for sales
Good quality Needle Winding Machine for sales
We trust you and have very good references of you from our Shanghai colleagues

—— Olayo Delgado

We are very happy with the machines!

—— Efrain.Alvarado

I'm Online Chat Now

Fully Automatic Coil Winding Machine Vertical 0.1mm Thin Wire Winding / Placement Machine

China Fully Automatic Coil Winding Machine Vertical 0.1mm Thin Wire Winding / Placement Machine supplier

Large Image :  Fully Automatic Coil Winding Machine Vertical 0.1mm Thin Wire Winding / Placement Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-100-VW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 60 Working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Motor Stator Coil Winding: Winding Main And Aux Coils With Servo System Winding Machine: Top 5 Best Sold Winding Machine
Wire Gauge: Min. 0.1mm (AWG38) Automation Type: Fully Automatic Vertical Winding With Rotary Device
Machine Color: White Or Per Customer Requirement After Sales: Engineers Available To Service Machinery Overseas
High Light:

motor coil winding machine

,

automatic coil winding machine

Fully Automatic Stator Vertical 0.1mm Thin Wire Winding And Placement Machine WIND-100-VW







(1) Application



AC Motor Stator Col Winding







(2) Opeartion process



WIND-100-VW vertical winding machine wind the coil and put coil to transfer form


When one station finished, the tooling rotate and shift to the other station winding,



At same time, operate can fetch out the transfer form with wound windings on it.



The transfer form with wire can be embered in stator in next operation process


wedge and coil insertion machine.







(3) Advantages:





✓ Material Saving



Save cooper wire because  don't need to connect separate coils





✓Stator narrow slot



Constant winding quality suitable for high filling rate stator winding insertion



with slot width above 1.36mm





✓Labor cost Saving



Stator winding machine wind coil directly to windings transfer former, operator



no need to put the coils in place, instead they just need to put on transfer



former on the winding insertion machine





✓ Better winding quality





Comparing to common cnc winding making machine, WIND-100-VM not only



save copper wire, but also ensure the winding quality during insertion to



stator,there winding wires don't break during insertion operation process









(4) Parameter:



Wire diameter:0.2~1.2mm (Other size custom made)


Min stator ID:40mm


Max stator OD:175mm


Core length:40-130mm


Power:380V, 50/60KW


Weight: about 1100kgs


Dimensions: 1900 (L)x850 (W)x3200(H)mm







(5) Feedback of Local clinet Yangzhou Jinfeida about the winding machine WIND-100-VW


It is feature is high efficiency,save copper wire and suitable for small slot opening stator with high filling

rate,also the wire don't break during insertion operation.




Please click below link to view video



Fully Automatic Coil Winding Machine Vertical 0.1mm Thin Wire Winding / Placement Machine





Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
