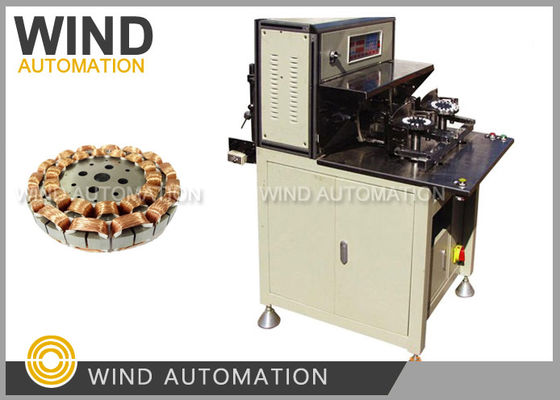

Ceiling Fan Ventilator Stator Winding Machine External Rotor Frequency Generator Coil Winder

China Ceiling Fan Ventilator Stator Winding Machine External Rotor Frequency Generator Coil Winder supplier

Large Image :  Ceiling Fan Ventilator Stator Winding Machine External Rotor Frequency Generator Coil Winder

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Certification: CE
Model Number: WIND-FW-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Detailed Product Description
Condition: New AC Fan Motor: 2 Poles, 4poles, 6poles
Work Piece Size: Stator OD Below 68mm And Height Below 50mm Winding Speed: Max. 1500RPM According Wire Gauge
Automatic Type: Fully Automatic Machine Color: White Or Per Customer Requirement
After SalesWinding Speed: Engineers Available To Service Machinery Overseas
High Light:

flyer winding machine

,

brushless motor winding

Ceiling Fan Ventilator Stator External Rotor Frequency Generator Coil Winder WIND-FW-2







(1) Application:



Winding machine is suitable for winding ceiling fan stator(for one Argentina ceiling fan manufacturer),



external armature such as frequency conversion, alternator and generator armature.







Wide Application



Variety of application, Simple Winding, Easy Operation





Stator Size



Espeically suitable for Stator OD below 68mm and height below 50mm





AC Fan Motor



2 poles, 4 poles, 6 poles








(2) Competitive Advantages:



1. Wind internal , external slots of ceiling fan, shift easily



2. Array and indexing is controlled by stepping motor,



    winding is controlled by frequency converting motor,



3. Economic machine for ceiling fan motor manufacturers







(3) Parameter:



Wire diameter 0.05~0.45mm



Stator O.D 100~163mm



Slot number Less than 24 slots



Stack height 6~30mm



RPM Max 2500RPM



Voltage 220V/50Hz, or customize



Power AC 1.5KW



Weight 135Kg



Dimension 1350mm*630mm*1130mm







(4) Suggestion:



Winding internal , external slots of ceiling fan motor with

Stator stack height below 50mm and diameter below 68mm and



and suitable for external rotor such as frequency conversion alternator and generator armature.







Question and Answer:



1. What type of fan motor can the machine wind?



    AC Motor Fan Stator Ceiling Fan Outside Rotor Outrunner Stator Winding Machine is suitable for



    winding  ceiling fan stator coil , external armature such as frequency conversion alternator and



    generator armature.



2. What is the winding accuracy?



    Ceiling fan winding machine WIND-FW-2 is a simple



    ventilator coil winder which auto winding,arraying,indexing,



    array and indexing is controlled by stepping motor,



    winding is controlled by frequency converting motor,



    turn number could be accurate up to 0.1 turns.







Below samples and drawing are needed for machine manufacturing and commissioning:



1. Stator stack 5pcs without winding



2. Wound stator 1pc



3. Copper wire 1 roll enough for winding 10pcs stators



4. Stator lamination drawing and winding drawing







Please click below picture to view video
Ceiling Fan Ventilator Stator Winding Machine External Rotor Frequency Generator Coil Winder





Contact Details
Shanghai Wind Automation Equipment Co.,Ltd

Contact Person: Ms. Emily

Send your inquiry directly to us (0 / 3000)
