Automatic Armature Coil Forming Machine With Japan Style Winding Way
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Coil Winding Type: | Armature Lap Wire Winding | Motor Type: | Power Tool, Drill, Hammer,de Ranhura, Groove Commutator |
|---|---|---|---|
| Winding Method: | Double Flyer Winding | Station: | One Station Two Fliers |
| Machine Color: | White Or Per Customer Requirement | After Sales: | Engineers Available To Service Machinery Overseas |
| NCM No / HS Code:: | Coil Winding Machine 8479811000 | ||
| High Light: | motor insulation paper,inserter machine |
||

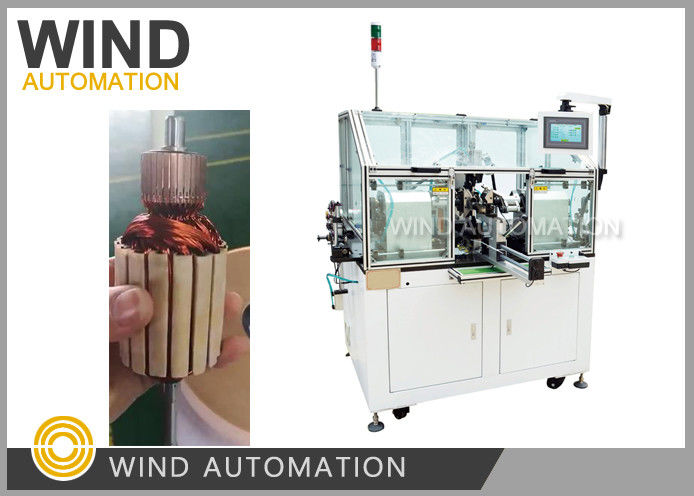

Automatic Armature Coil Forming Machine With Japan Style Winding Way WIND-ST-TD2B
(1) Application
Slotted type, riser commutator PMDC armature winding
(2) Competitive Advantages
1. Slotted commutator save copper wire, armature coil forming machine save labor cost
2. Biggest wire gauge handle AWG16 (1.35mm) armature
3. No need to work with special designated commutator slotting machine
4. 98% yield rate above assured when the slot commutator quality is good
5. Till now it is the best machine in China for winding slot type armature
(3) Parameter
| Power supply | 220V, 50HZ |
| Winding spindle motor | Mitsubshi 1000W servo motor |
| Arraying wire displacement motor | Mitsubshi 400W servo motor |
| Indexing motor | Mitsubshi 400W servo motor |
| Wire diameter |
0.45mm~1.25mm (AWG16~AWG45) |
| Armature OD | 70~250mm |
| Spindle speed | 0~1500rpm |
| Turns No. | 0-999 |
| Air pressure | 0.5-0.7Mpa |
| Pneumatic | Airtac |
(4) Instruction for Use
For armature winding machine, the popular device is double flyer winding machine
which wind the armature lap windings both side to achieve a better balancing result.
There are different kinds of commutator in armature design,
one type is hook type widely used in mixer, blender, vacuum cleaner, drill motors,
the other type is riser type also called slot type commutator used in blades.
| Item | Name | Type | Quantity |
| 1 | Spindle rotate belt | 165L | 1pc |
| 2 | Indexing rotate belt | 182XL | 1pc |
| 3 | Belt | 102XL | 2pcs |
| 4 | Fuse | RT18-32 2A | 2pcs |
| 5 | Fuse | RT18-32 10A | 2pcs |
| 6 | Ceramics wire wheel | ∮6 | 2pcs |
| 7 | Sensor | AL-13D-02 | 1pc |
| 8 | Sensor | AL-11RL-02 | 1pc |
| 9 | V bearing | 1pc | |
| 10 | FDS016 | 1pc | |
| 11 | Pail for wire | 1pc | |
| Tool | |||
| Item | Name | Type | Quantity |
| 1 | Innder hexagon spanner | 8pcs | 1set |
| 2 | Open spanner | 13-16mm | 1pc |
| 3 | Slotted screw | 1.5'' | 1pc |
| 4 | Cross screw | 4'' | 1pc |
| 5 | Wrench | 8pcs | 1set |
| 6 | Tweezers | stainless steel | 1pc |
| 7 | Diagonal Pliers | 1pc | |
| 1pc |
Please click below picture to view video
