WIND-90-CWI Slot Insulation Machine / Wedge Insertion Machine 400pcs Per Shift

China WIND-90-CWI Slot Insulation Machine / Wedge Insertion Machine 400pcs Per Shift supplier

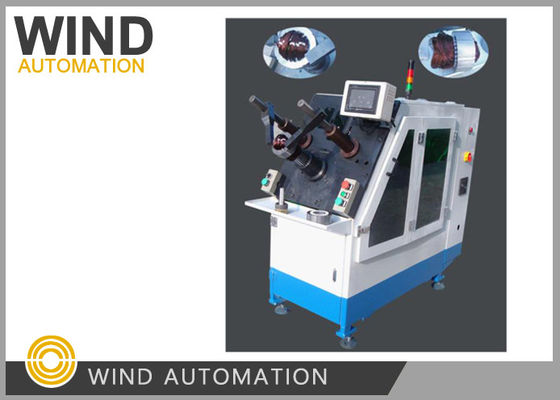

Large Image :  WIND-90-CWI Slot Insulation Machine / Wedge Insertion Machine 400pcs Per Shift

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-90-CWI

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Wooden pallet suitable for sea or air shipment
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Hydraulic Or Servo Device: Insert Coils And Wedge With Servo System Slot Size Of Stator: Min.slot Size Machine WIND-90-CWI Handle Is 1.36mm
Induction Motor: Pump, Compressor, Washing Machine Ect Voltage: 3Phase, 380V,50Hz
Machine Color: White Or Per Customer Requirement After Sales: Engineer Available For Oversea Support
High Light:

motor insulation paper

,

inserter machine

Induction Motor Pump Winding And Wedge Insertion Machine 400pcs Per Shift WIND-90-CWI







(1) Application



Induction motor pump winding and wedge insertion machine WIND-90-CWI is suitable for insertion of



induction motor coils which is with concentric winding method







(2) Parameter



Thickness of stator lamination: 8mm-125mm


Min stator ID: Φ 30mm


Max outer diameter of stator: Φ 160mm


Max winding feeding rate: ≤ 80%


Input: 380V/ 50Hz


Air pressure: 0.5-0.8MPa


Power: 3.5KW


Machine productivity: 400pcs/ 8 hours


Dimension: 1800mm × 650mm × 1700 mm


Weight: ≈ 1000kg







Please click below photo to view video


WIND-90-CWI Slot Insulation Machine / Wedge Insertion Machine 400pcs Per Shift
