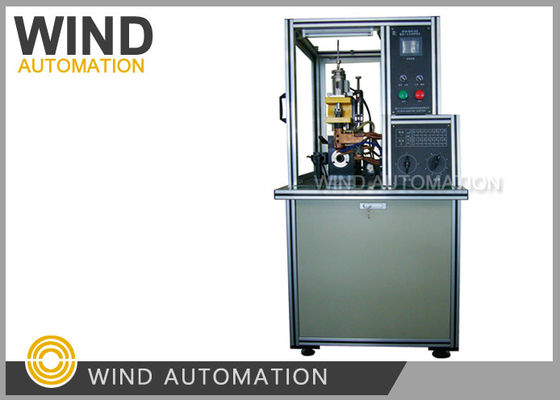

One Second Per Hook Commutator Motor Winding Machine / Hot Stacking Fusing Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Welding Diameter: | 0.07mm--1.80mm | AC Power Supply: | Rated Capacity 25kvA |
|---|---|---|---|
| Fusing Head: | One | Cooling Method: | Internal Circular Water Cooling |
| Adjustment Easy: | The Welding Operation And Setting Is Easy For Operator | Welding Big Wire Diameter Range: | Round Wire,Flat Wire |
| Gross Weight: | 520KGS Including Package Pallet | ||
| High Light: | arc welding machine,ultrasonic welding machine |
||
One Second Per Hook Commutator Welding Hot Stacking Fusing Machine Hot In India WIND-CW001
(1) Application:
Power tool, mixer, and the automobile motor
(2) Advantages:
1. This machine is with AC power supply, econmic type popular in develping counries
2. This welding machine is with one fusing head, fuse one point per time 1s' / hook
3. This machine is easy to operate
(3) Fusing machine Parameter:
Power voltage: 220V+/-10%
Frequency: 50Hz
Armature O.D range: 15mm--100mm
Shaft O.D range: 1.8mm—23mm
Commutator O.D range: 5mm--60mm
Wire diameter: 0.07mm--1.80mm
Max power: 25KVA
Air source pressure: 0.3--0.5Mpa
Production efficiency: 10sec/pc
HS Code:8515800090
(4) What data is required when you send inquiry:
1. Armature size including armature OD, Shaft diameter and length
2. Wire diameter range
Please click below commutator welding machine fusing head picture to view video
