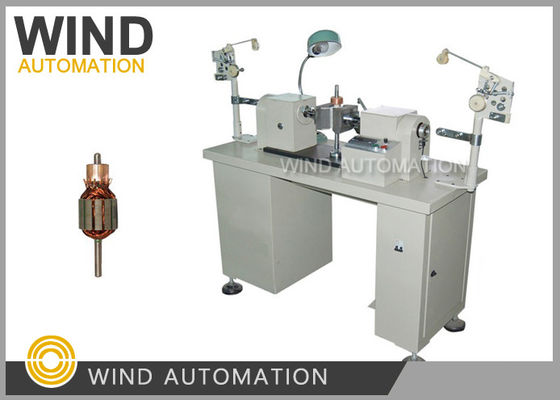

Semi Auto Coil Winding Machine Flyer Winder For Hook Commutator Armature Rotor Coil Winding

China Semi Auto Coil Winding Machine Flyer Winder For Hook Commutator Armature Rotor Coil Winding supplier

Large Image :  Semi Auto Coil Winding Machine Flyer Winder For Hook Commutator Armature Rotor Coil Winding

Product Details:

Place of Origin: China Best No Hook Commutator Armature Winder
Brand Name: WIND AUTOMATION
Certification: Main parts CE
Model Number: WIND-RW-S

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Poly wood case suitable for sea and air shipment
Delivery Time: 45 Working Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Armature Commutator Type: Hook Commutator Or Armature Without Commutator Armature Manufacturing: Vacuum Cleaner Hammers Power Tool Armatures
Winder Flyer: Single Flyer Winding Can Wind Different Slots Winding Motor: Mitsubishi Servo Motor 1000W
Armature Rotor Stack: Straight Stack Or Skew With Different Initial Positioning Way Winding Way: Semi-auto Winding,Step, JOG
High Light:

motor coil winding machine

,

stator coil winding machine

Semi Auto Flyer Winder For Hook Commutator Armature Rotor Coil Winding WIND-RW-S







Application:



Armature winder for slotted type commutator armature,Vacuum cleaners hammers power tool







Advantages:



1. Economic Armature Coil Winding /Rotor Winder for small quantity armature production



2. Tooling can be changed easily for types of armatures



3. Single flyer winding can wind different slots



4.  Winding flyer is driven by Mitsubishi servo motor







Main Data:



Main spindle winding speed: 0~1000RPM



Winding motor : Mitsubishi servo motor 1000W



Indexing motor: Stepper motor



With PLC control system and touch screen panle



Air pressure: 0.5~0.7Mpa



HS code: 8479811000







Winding Machine Operation process:



Manually load armature,automatically indexing, manually hooking,automatically winding







Please click below picture to view video



Semi Auto Coil Winding Machine Flyer Winder For Hook Commutator Armature Rotor Coil Winding



Double flyer armature winder manually load armature,automatically indexing,



manually hooking,automatically winding https://vimeo.com/137616170





Single flyer rotor winding manually load armature,automatically indexing,



No hooking,automatically winding https://youtu.be/pjPb-gFjyJQ
