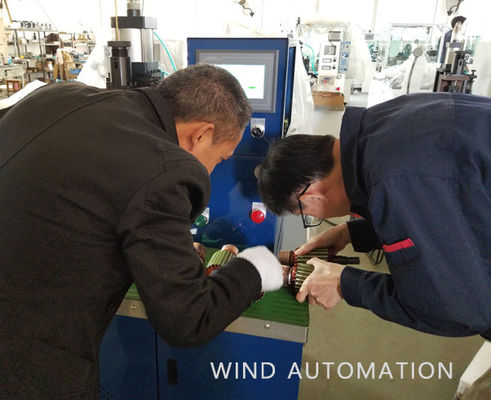

15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine

China 15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine supplier
15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine supplier 15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine supplier

Large Image :  15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine

Product Details:

Place of Origin: China
Brand Name: WIND AUTOMATION
Model Number: WIND-DC-CW003

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Two pallets one for welding machine , one for water cooling device 662KGS 1040mm*1040mm*1960mm, 740mm*740mm*1270mm
Delivery Time: 30 working days
Payment Terms: T/T
Contact Now
Detailed Product Description
Condition: New DC Power Supply: High Frequency 15KHz Constant DC Power Supply
Fusing Wire Size: Commutator Spot Welding Fusing Soldering Hot Staking Machine Weld 0.08mm~1.2mm Welding Cooling Device: With A Separate Water Cooling Device
Adjustment Easy: The Welding Operation And Setting Is Easy For Operator Welding Big Wire Diameter Range: From 0.01mm To 1.20mm For Types Of Armatures
Gross Weight: 662KGS Including Package Pallet Armature Hot Staking Machine: Tang Commutator,Hook Commutator,Rise Commutator
High Light:

arc welding machine

,

ultrasonic welding machine

15KHz armature commutator spot welding fusing soldering hot staking machine DC power







Application:



Annealing machine for bonding conductors on the rmature and/ or commutator bar of a PMDC motor armature,fractional horsepower DC moor with hook commutator, riser commutator







Advantages:



1. Self-developed High frequency 15KHz power supply ensure constant  fusing quality



2. Easy for the operator who like the machine type WIND-DC-CW003 most among welding machine



3. For high standard usage with big output and widely covering thick wire, thin wire gauge



    0.01mm~1.20mm







Feature:



Commutator spot welding machine conductor hot staking Fusing for thin or big wire High frequency



inverter weld and hot stacking commutator with small big wire thin and big wire, with cooling water device



(act as a conditioner)



The solder connect commutator segment tang and wire, the fusing machine positioned adjacent the



copper wire and tang during hot staking to enhace the electrical and mechanical connection.

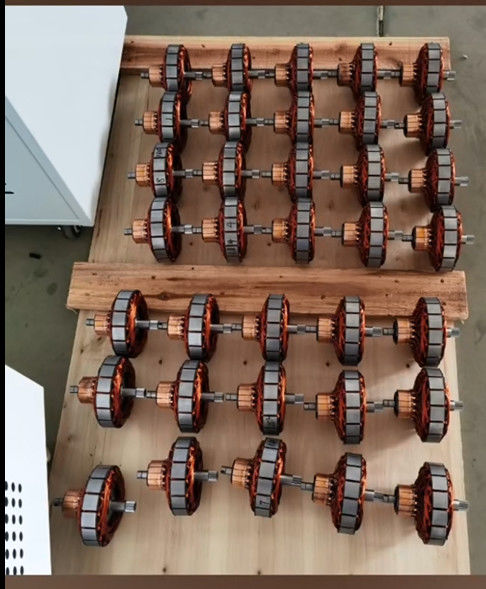

For hook type commutator, each segment have a tang, the commutator fusing machine hot forging the



armature  conductor coil wire and commutator segment and filling at least some cavities between the wire



and tang with electrode.







Fusing machine Parameter:



Wire diameter: 0.01~1.2mm



Armature OD: 20~100mm



Armature stack height:10~100mm



Commutator OD:8~70mm



Airsource:5~7KG/cm2



Welding power: 10~30KW



3phase AC 380V 50~60Hz



Weight: about 350KGS



Fusing power supply: Wind Automation self developed high frequency 15KHz, 500~5000A



Control system: Japan Mitsubishi PLC



Indexing control: Japan Mitubishi servo positioning system 7'' Touch screen



15KHz High Frequency Armature Commutator Spot Welding Fusing Hot Staking Machine

There are two major fusing machine, one is AC power supply fusing, the other is DC power supply fusing

AC power supply consume more electricity comparing to DC power supply, it is economic type,

DC power supply achieve better fusing and cost less electricity in long time usage,
